Best Coating Thickness Gauges in 2026: Buyer’s Guide
A coating thickness gauge measures how thick a layer of paint, galvanising, powder coat, or plating sits on a substrate — without damaging it. That single number governs corrosion protection, warranty compliance, finish quality, and even used-vehicle inspection. This 2026 guide explains the measurement methods, the specifications that matter, and which MarMonix gauges suit each job.
The right gauge depends on your substrate, coating type, and accuracy needs. Measuring paint on steel, anodising on aluminium, or wall thickness on a pipe each calls for a different physical principle, so matching the method to the material is the first decision.
What a Coating Thickness Gauge Measures
Most gauges report dry film thickness (DFT) in microns or mils — the height of the coating above the base material. Accurate DFT is what proves a protective system was applied to specification.
Why coating thickness matters
Too thin and the coating fails early through corrosion or wear; too thick and it can crack, peel, or simply waste expensive material. Specification compliance lives or dies on measured DFT.
Where these gauges are used
Protective-coating and anti-corrosion work, galvanising and powder coating, automotive refinishing and used-car inspection, and general quality control all depend on reliable thickness measurement.

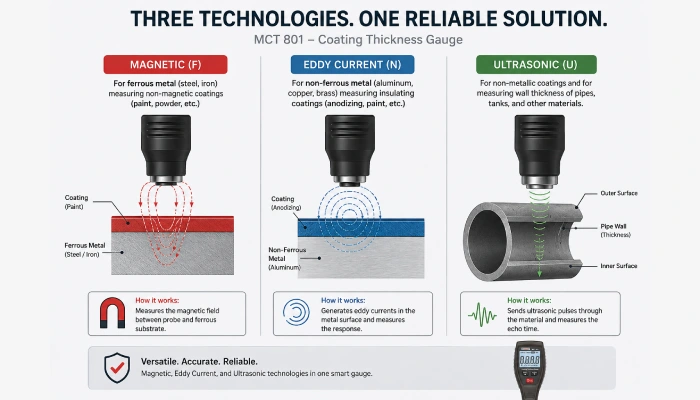

Measurement Methods
Magnetic induction (ferrous)
Magnetic induction measures non-magnetic coatings — paint, powder, zinc, chrome — over ferrous (steel and iron) substrates. It is the workhorse for structural-steel and automotive bodywork.
Eddy current (non-ferrous)
Eddy current measures non-conductive coatings over non-ferrous metals such as aluminium, brass, and stainless steel — essential for anodising and architectural finishes.
Dual Fe/NFe probes
A dual-mode gauge detects the substrate automatically and applies the correct method, so one instrument covers steel and aluminium without you switching probes.
Ultrasonic thickness
For measuring the wall thickness of metal or the coating on non-metal substrates, ultrasonic gauges send a pulse and time its echo — the method behind corrosion and material-thickness checks on pipes and plate.
Key Specifications to Compare
Calibration is what makes a reading trustworthy. Quality gauges support a zero on the bare substrate plus verification against traceable calibration foils, and follow standards such as ISO 2808, ISO 2178, and ISO 2360. Always zero and verify on a known reference before measuring.
Range, resolution, and accuracy
Confirm the gauge spans your thinnest and thickest coatings with adequate resolution and a stated accuracy suitable for your specification.
Statistics and logging
Look for on-board averaging and statistics plus data logging, because coating specs are usually judged on a series of readings, not a single point.
How to Choose by Use Case
Protective coatings and steelwork
A magnetic-induction or dual gauge with statistics suits structural and anti-corrosion DFT checks.
Automotive and refinishing
A dual Fe/NFe gauge quickly reveals filler and repaint on bodywork during inspection and used-car appraisal.

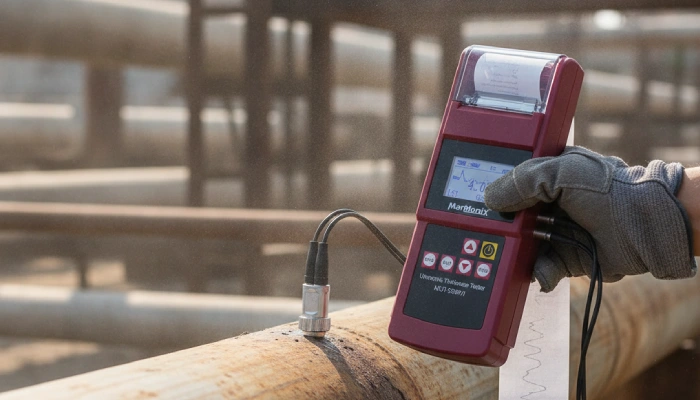

Pipe and material inspection
An ultrasonic thickness gauge measures remaining wall thickness for corrosion monitoring.
MarMonix Thickness Gauges Compared
MarMonix offers coating and material thickness gauges; see the range in the coating thickness category, or compare the key models below.
Model strengths
The MCT 801 is a coating thickness gauge for paint, powder, and plating over metal substrates, while the MHT-820-DSP addresses material thickness measurement for inspection work. Match the method — magnetic, eddy current, or ultrasonic — to your substrate and coating before choosing.
How to Take Accurate Readings
Zero the gauge on the bare, clean substrate, verify against a calibration foil close to your expected thickness, and hold the probe flat and steady. Take multiple readings across the area and average them, avoiding edges, curves, and seams that distort the field. Surface roughness and curvature both affect readings, so measure on representative flat areas wherever possible.
Substrate, Surface, and Real-World Accuracy
The gauge is only half the measurement; the surface you place it on shapes the result just as much, which is why understanding substrate effects separates good readings from misleading ones.
Surface roughness
A rough or blast-profiled substrate raises the apparent coating thickness because the probe averages over peaks and valleys. Where a profile exists, a correction or a base-effect calibration on the uncoated, profiled surface keeps DFT honest.
Curvature and edges
Tight curves, corners, and edges distort the magnetic or eddy-current field and inflate readings. Measure on representative flat areas, and use small probes or curvature corrections for pipes and small parts.
Temperature and substrate thickness
Very thin substrates and extreme temperatures can also shift readings. Allow the gauge and part to reach a stable temperature, and confirm the substrate is thick enough for the chosen method. Documenting these conditions makes a coating report defensible if it is ever challenged.
Common Mistakes to Avoid
Skipping the zero and foil check, measuring on edges or tight curves, using the wrong method for the substrate, and judging a coating on a single reading are the usual errors. Calibrate first and sample widely; a coating spec is a statistical result, not one lucky point.
Frequently Asked Questions
What is dry film thickness (DFT)?
DFT is the thickness of the cured coating above the substrate, measured in microns or mils. It is the key value for proving corrosion protection and specification compliance.
How do I measure paint over aluminium?
Use the eddy-current method (or a dual Fe/NFe gauge), since magnetic induction only works over ferrous substrates like steel and iron.
Why calibrate with foils?
Calibration foils of known thickness let you verify accuracy against a traceable reference, which keeps your readings defensible and consistent.
Can a coating gauge detect car body filler?
Yes — abnormally high readings over bodywork reveal filler or repaint, which is why dual gauges are popular for used-vehicle inspection.
How many readings should I take?
Coating standards are statistical, so take a cluster of readings across each area and report the average together with the spread. A single point can easily fall in a thin or thick spot and misrepresent the whole surface.
