MarMonix MIR510 Insulation Resistance Tester
The MarMonix MIR510 Insulation Resistance Tester is designed for accurate insulation resistance testing of cables, motors, generators, transformers, high-voltage switches, arresters, and other large equipment. It features a wide insulation resistance range of 0.5MΩ to 10TΩ, a rated voltage of 250V to 5kV (5 levels), and a short circuit current of >7mA. Equipped with advanced functions such as voltage monitoring, test timer, automatic discharge, and multiple testing modes including IR, PI, DAR, RAMP, and FR, it ensures reliable and efficient performance in demanding applications.
MarMonix MIR-510 Insulation Resistance Tester

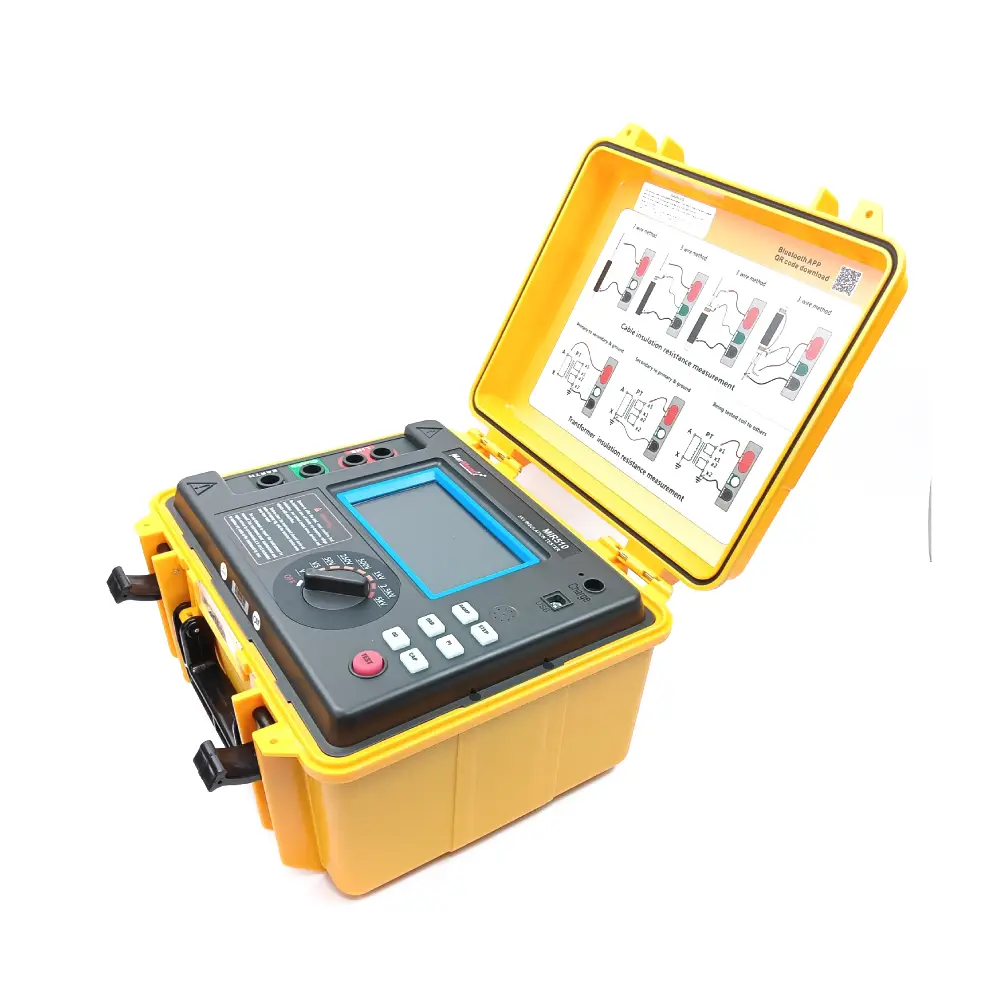

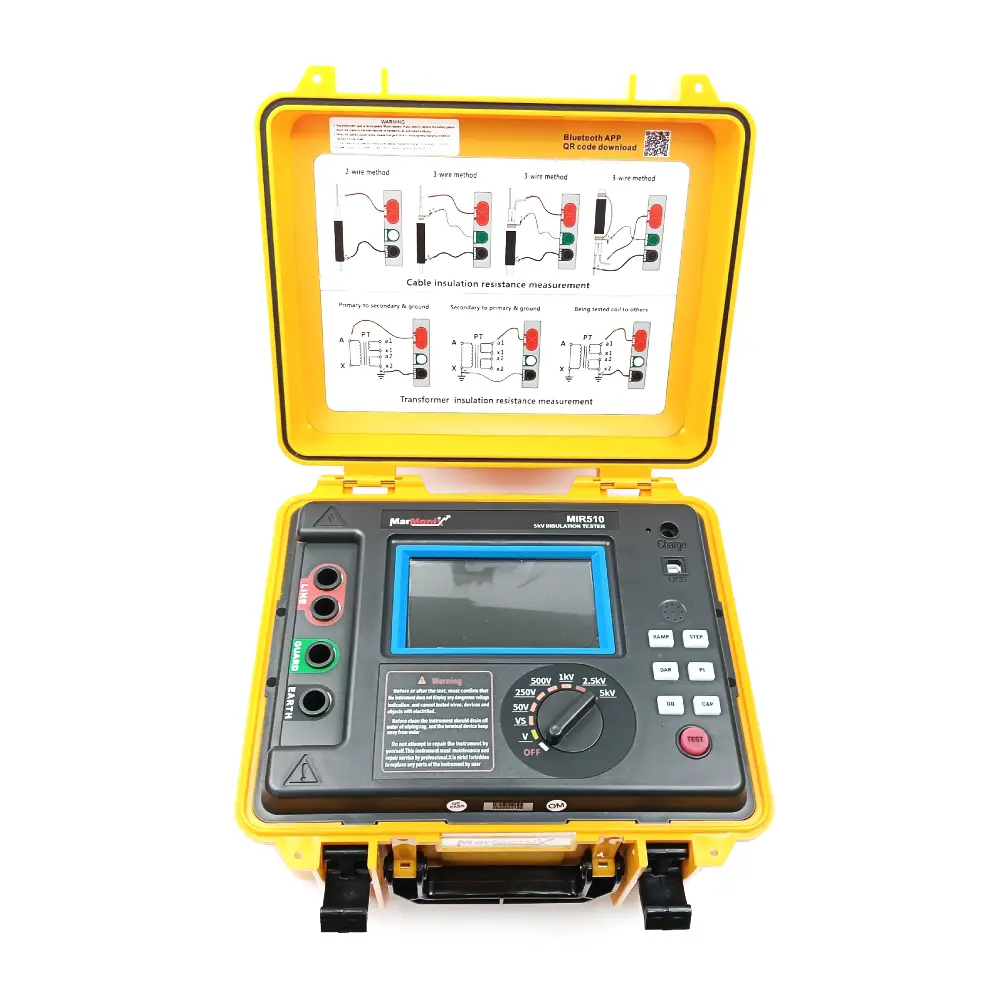

The MarMonix MIR510 High Voltage Insulation Resistance Tester is a state-of-the-art device designed for precise and reliable insulation resistance testing. Engineered with advanced research and development, this instrument is ideal for high-voltage electrical equipment, large-capacity devices, and transmission lines. Its true-color touch screen provides a clear and comprehensive display of all test data and battery status on a single screen, ensuring ease of use. The intuitive interface combines a knob switch and button operation, eliminating the need to memorize steps, while the built-in HELP feature offers on-screen guidance for seamless operation.
Safety is a top priority with the MIR-500 Series. The device features a rapid discharge function that automatically releases the charge of the tested object after testing. Its voltage monitor automatically detects live voltage and prohibits testing if the voltage exceeds 36V, ensuring protection for both the operator and the instrument. Designed with a durable double-shell structure rated IP65, the instrument is resistant to moisture, dust, and impact, making it highly suitable for demanding environments and transportation.
The MIR-500 Series offers comprehensive testing capabilities, including insulation resistance (IR), polarization index (PI), dielectric absorption ratio (DAR), ramp test mode, filtered resistance test, voltage and capacity measurement, and leakage current measurement. It also features a test timer for accurate duration recording and a wide range of selectable test options, making it versatile for various applications.
For data management, the device automatically records test times and results, complete with date stamps, which can be reviewed directly on the touch screen. Additionally, the USB interface allows for safe data transfer to a PC for analysis and report generation. Equipped with double-insulated and shielded test lines, as well as a high-voltage rod with replaceable clips and hooks, the instrument adapts to various testing scenarios effortlessly.
The MIR-500 Series is suitable for a wide range of applications, including testing cables, motors, generators, transformers, high-voltage switches, and lightning arresters. It is widely used in industries such as power generation, telecommunications, oil fields, mechanical and electrical installations, and industrial enterprises. With its wide measurement range, high precision, strong durability, and excellent safety features, the MarMonix MIR-510 is an indispensable tool for professionals who require reliable insulation resistance testing in industrial environments.
MarMonix MIR500 Digital Insulation Resistance Tester

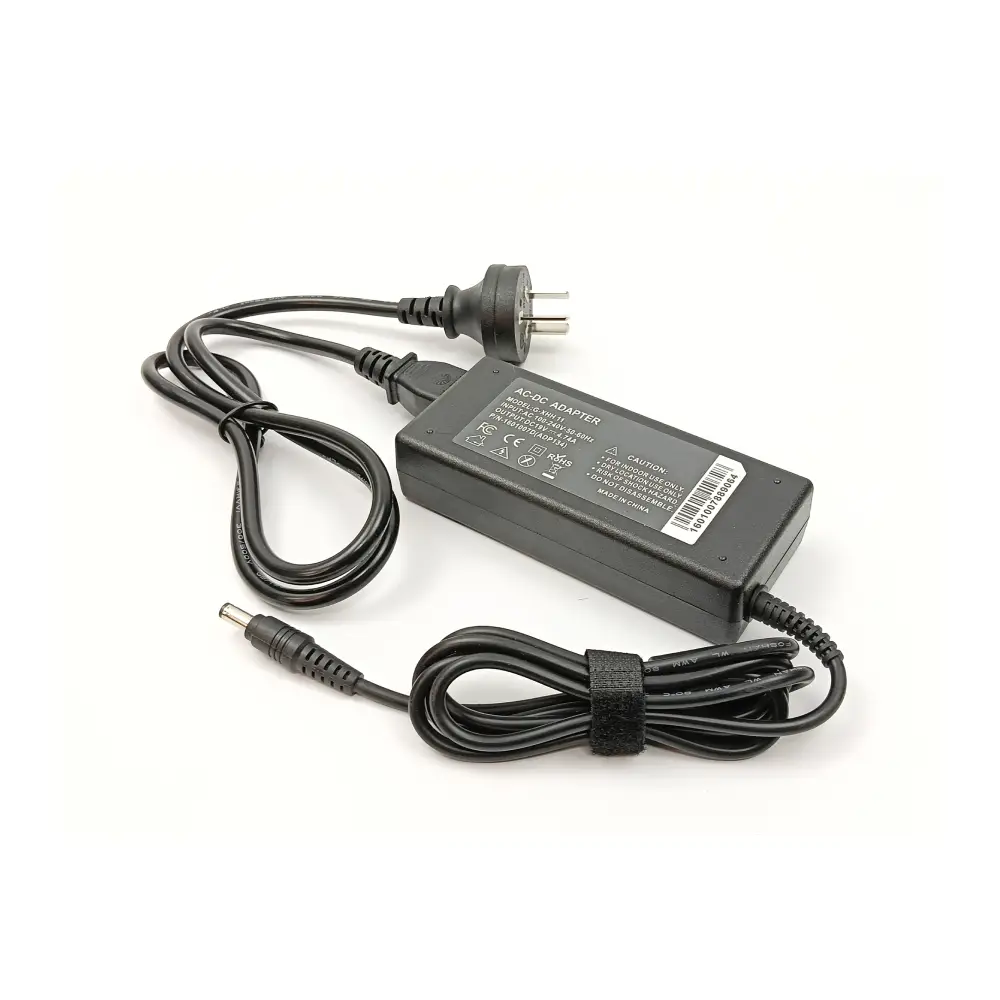

| Specification | Details |
|---|---|
| Function | Insulation resistance measurement (IR), polarization index measurement (PI), Dielectric Absorption Ratio Test (DAR), Ramp Test Mode (RAMP), Filtered Resistance Test (10S, 20S, 30S, 40S options), Voltage Measurement (V), Capacitance Measurement (uF), Leakage Current Measurement (nA) |
| Power Supply | Rechargeable lithium battery pack 6.2Ah |
| Rated Voltage | 250V / 500V / 1000V / 2500V / 5000V |
| Output Voltage Accuracy | (5%-10%) ±10V |
| Insulation Resistance Range | 0.5ΜΩ-10ΤΩ |
| Short Circuit Current | >7mA MAX |
| Polarization Index Test (PI) | Yes |
| Dielectric Absorption Ratio Test (DAR) | Yes |
| Ramp Test Mode | Test at 10% of the preset voltage until the preset voltage |
| Filtered Resistance Test Mode | 10S, 20S, 30S, 40S |
| Voltage Measurement | Range: AC/DC 0V-1000V; Accuracy: ±5%rdg ±3V |
| Capacitance Measurement | Range: 10nF-25uF; Accuracy: ±10% ±10nF |
| Leakage Current Measurement | Range: 0.01nA-9.00mA; Accuracy: ±5%rdg +0.5nA |
| Voltage Monitor | Monitors voltage of the measured object, discharge status after test; forbids testing when voltage >36V |
| Test Time | Automatic record test time, range: 0s-99995 |
| Storage Function | Automatically stores test data with date and time, total of 1000 groups |

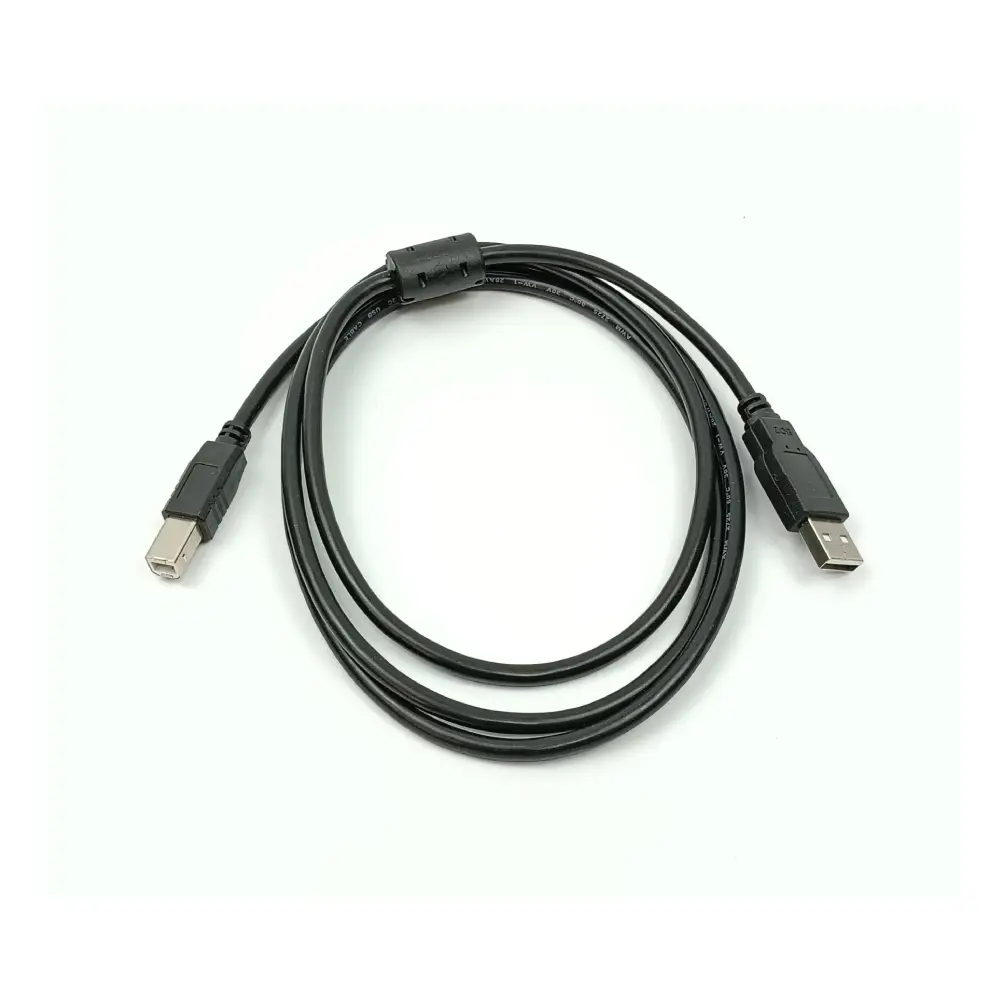

| Upload Function | Upload stored data to computer via USB communication cable |
| Battery Power Display | Displays battery power, alerts when voltage is low |
| Automatic Shutdown | Shuts down automatically after 15 minutes of inactivity |
| Meter Dimension | 280mm × 260mm × 160mm |
| Weight | 4900g |

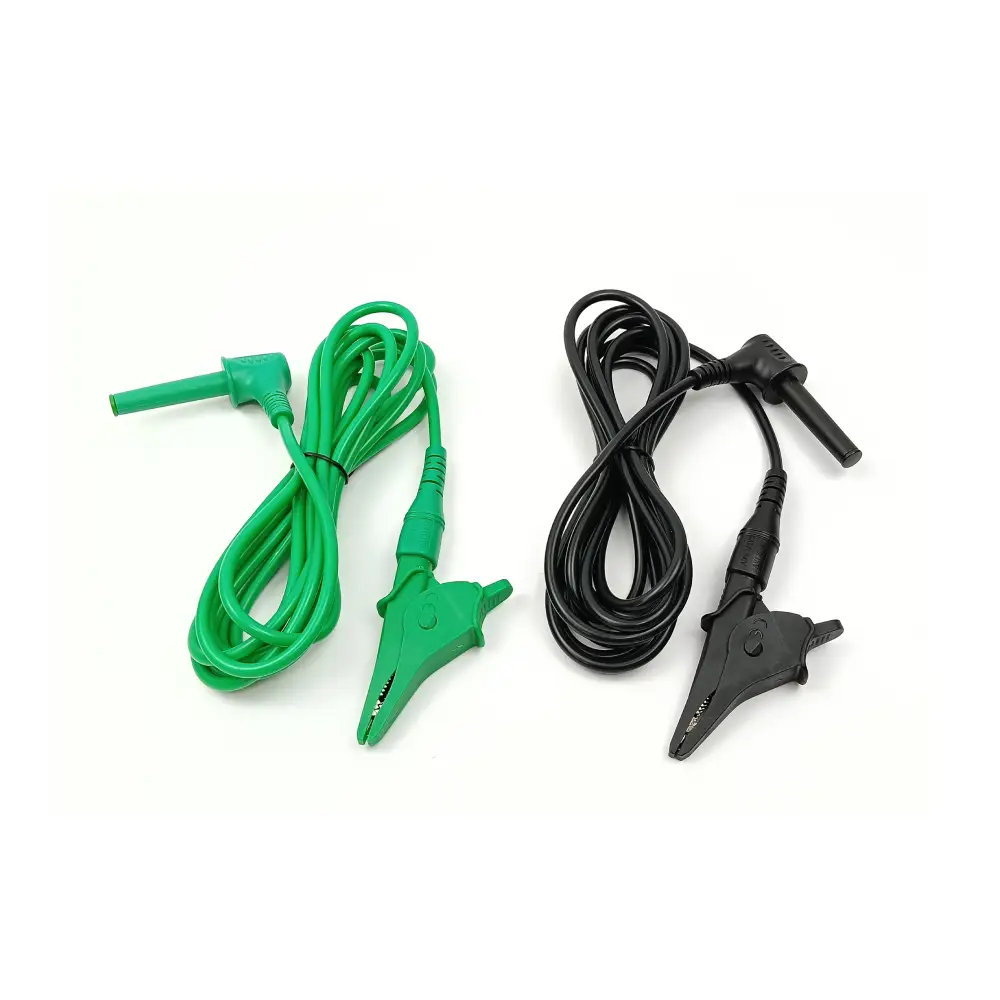

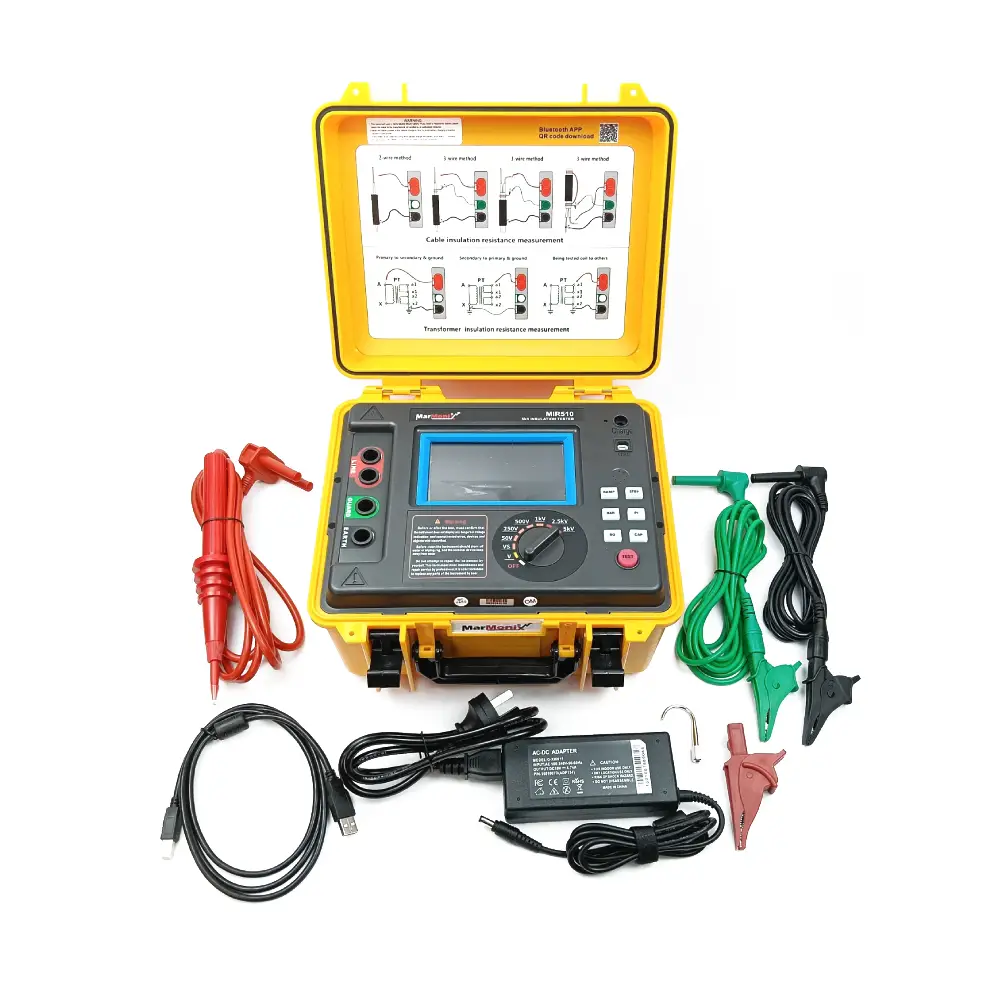

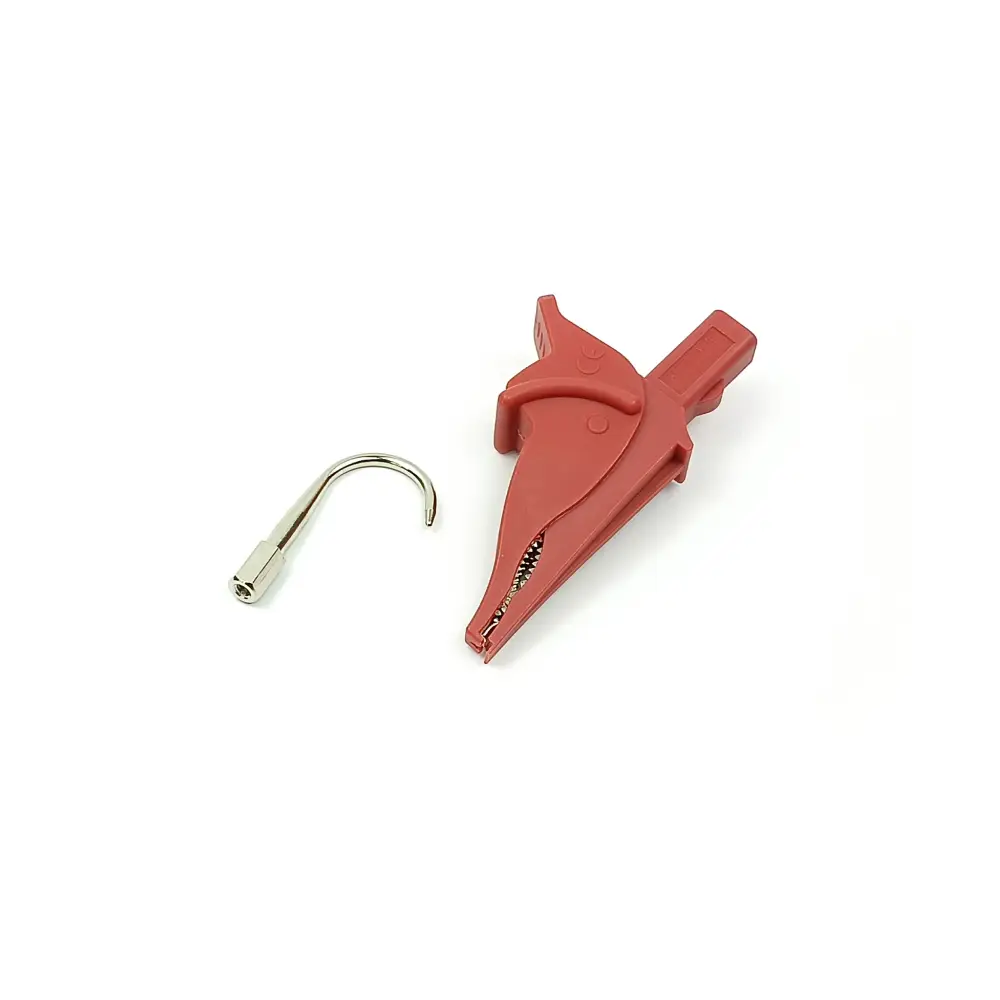

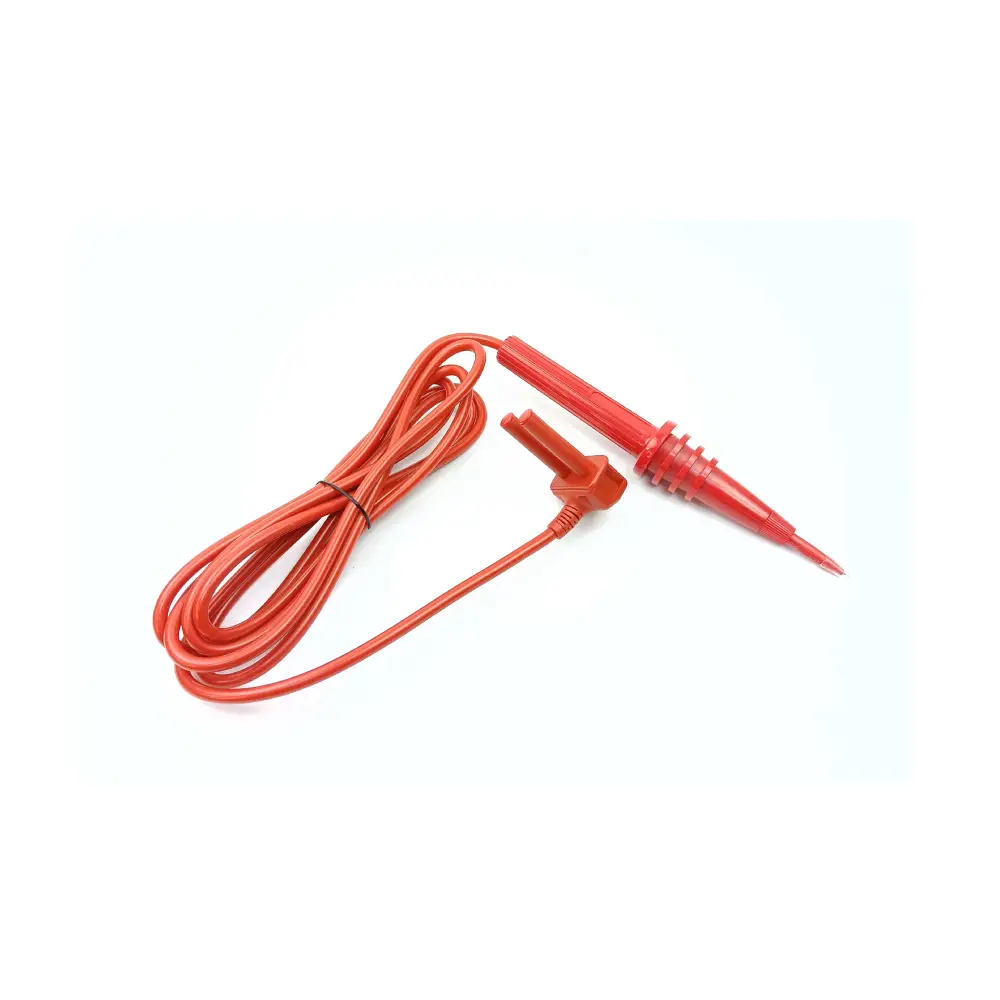

| Test Wire | Red high voltage test wire 1 pcs (with alligator clip 1 pcs and hook 1 pcs), green test wire 1 pcs, black test wire 1 pcs |
| Protection Level | Closed case: IP65, Open case: IP40 |
| Withstand Voltage | 3mA AC 50Hz |
| Working Temperature and Humidity | -20°C to 50°C, 80%rh |
| Storage Temperature and Humidity | -25°C to 65°C, 80%rh |
| Insulation Resistance | 50ΜΩ (1000V) (between test circuit and shell) |
| Withstand Voltage | AC 3kV 50Hz 1min (between test circuit and shell) |
| Suitable Safety Standard | IEC61010-1, IEC61326-1 |
