Marmonix MCA-212 True RMS Clamp Meter
33 Comments
1200 A AC/DC True RMS clamp meter with full multimeter functions: 1000 V DC / 750 V AC, 60 MΩ, 9.999 mF, 9.999 MHz, µA and Type-K temperature to 1000 °C. Backlit 6000-count display, peak hold, MAX/MIN, CAT IV 600 V and a 2-year warranty.
WhatsApp
Email
Telegram
Description

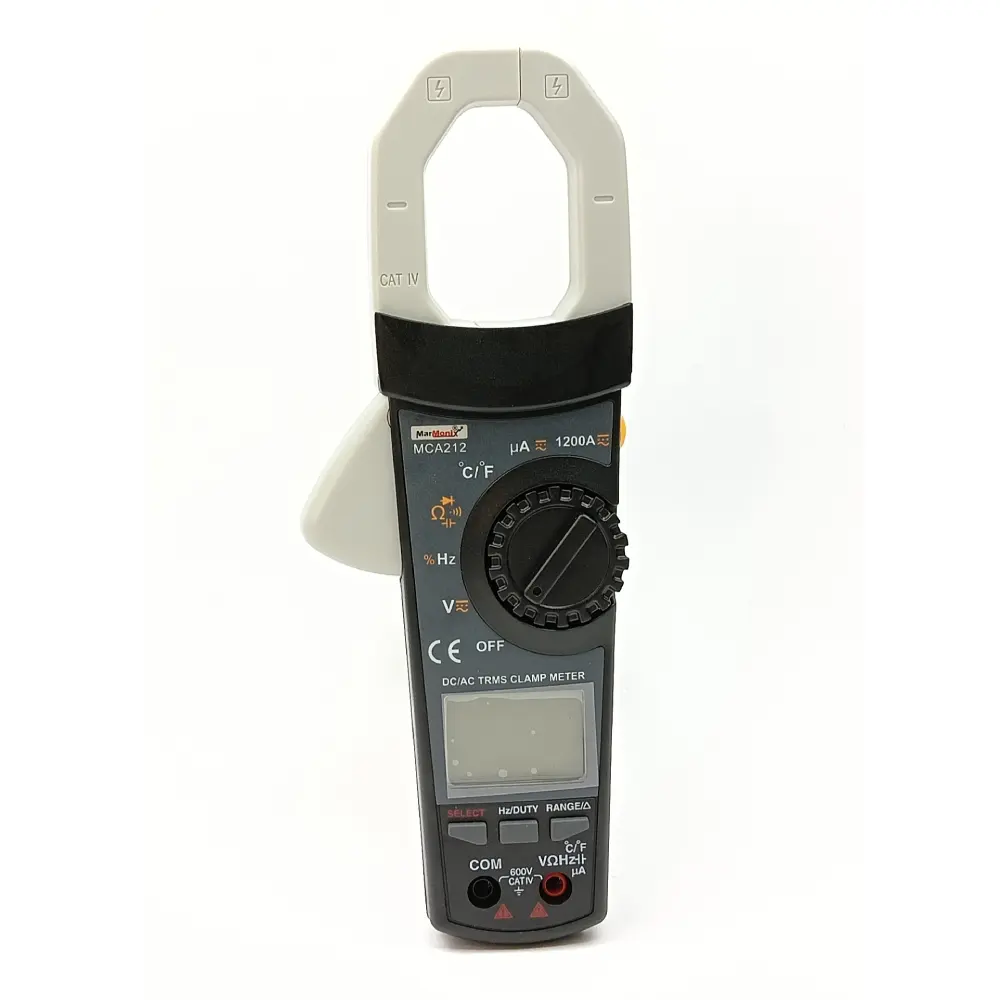

The Marmonix MCA-212 is a 1200 A AC/DC True RMS clamp meter for electricians and maintenance engineers who need to read heavy feeder, motor, solar and battery currents without breaking the circuit. It adds a full multimeter on the same tool: 1000 V DC / 750 V AC, 60 MΩ, 9.999 mF capacitance, 9.999 MHz frequency, duty cycle, µA current and Type-K temperature to 1000 °C, all on a backlit 6000-count display and rated CAT IV 600 V.
See all clamp meters or digital multimeters, read how to use a clamp meter safely, or compare in our clamp meter vs multimeter guide.
Why choose the MCA-212
- AC and DC to 1200 A – many 1000 A meters in the UAE market stop at 1000 A or AC only.
- True RMS for accurate readings on VFDs, UPS and LED loads.
- Full multimeter functions: voltage, resistance, continuity, diode, capacitance, frequency, duty cycle, µA, temperature.
- Data hold, MAX/MIN, relative and peak hold to catch inrush and cycling loads.
- CAT IV 600 V, overload protection, auto power-off and low-battery alert.
- 2-year warranty and local support across the UAE and GCC.
Typical applications
- Load and phase-balance checks on distribution boards and MCCs
- Motor and pump current, inrush (peak hold) and VFD output
- Solar PV string and battery bank DC current
- HVAC compressor current, capacitor and temperature checks
- Vehicle, generator and alternator diagnostics
MCA-212 electrical specifications
| Function | Ranges | Resolution | Accuracy | Max / notes |
|---|---|---|---|---|
| DC voltage | 600.0 mV / 6.000 V / 60.00 V / 600.0 V / 1000 V | 0.1 mV – 1 V | ±(0.5% + 3) | 1000 V |
| AC voltage | 600.0 mV / 6.000 V / 60.00 V / 600.0 V / 750 V | 0.1 mV – 1 V | ±(1.0% + 3) | 750 V, 40 Hz–1 kHz |
| DC current (µA) | 600.0 µA / 6000 µA | 0.1 µA / 1 µA | ±(1.2% + 3) | 6000 µA |
| DC current (A, clamp) | 60.00 A / 600.0 A / 1200 A | 0.01 A – 1 A | ±(2.0% + 30) | 1200 A |
| AC current (µA) | 600.0 µA / 6000 µA | 0.1 µA / 1 µA | ±(1.5% + 3) | 6000 µA, 40 Hz–1 kHz |
| AC current (A, clamp) | 60.00 A / 600.0 A / 1200 A | 0.01 A – 1 A | ±(2.0% + 30) | 1200 A, 40 Hz–1 kHz |
| Resistance | 600.0 Ω – 6.000 MΩ / 60.00 MΩ | 0.1 Ω – 0.01 MΩ | ±(0.5% + 3) / ±(1.5% + 3) | 60 MΩ |
| Capacitance | 9.999 nF / 99.99 nF – 999.9 µF / 9.999 mF | 0.001 nF – 0.001 mF | ±(5.0% + 20) / ±(2.0% + 5) / ±(5.0% + 5) | 9.999 mF |
| Frequency | 99.99 Hz – 9.999 MHz | 0.01 Hz – 0.001 MHz | ±(0.1% + 2) | 9.999 MHz |
| Duty cycle | 1% – 99% | 0.1% | ±(0.1% + 2) | — |
| Temperature (Type K) | −20 to 1000 °C / −4 to 1832 °F | 1 °C / 1 °F | ±(2.5% + 5) | 1000 °C / 1832 °F |
| Diode / continuity | Yes (beeper below 50 Ω) | — | — | — |
General specifications
| Parameter | Value |
|---|---|
| Display | 6000-count LCD with backlight, 3 updates/s |
| Ranging | Auto / manual |
| True RMS | Yes |
| Functions | Data hold, MAX/MIN, relative, peak hold, low-battery alert, auto power-off |
| Safety | CAT IV 600 V (marked on the meter), overload protection |
| Battery | 1 × 9 V (6F22) |
| Dimensions / weight | 240 × 90 × 45 mm / 288 g |
| Housing | ABS |
| Operating | 0–40 °C, <75% RH |
| Storage | −20 to 60 °C, <80% RH |
| Part number / GTIN | 7603341 / 6298043998086 |
| Warranty | 2 years |
Source: official MCA-212 datasheet and user manual (Downloads tab).
How to measure current with the MCA-212
- Turn the rotary switch to AC/DC Current (A) and press SELECT to choose AC or DC.
- Press the jaw release and close the jaws around one conductor, centred in the jaws.
- Read the current; use HOLD or MAX/MIN while the load cycles.
- For voltage, resistance or temperature, plug the leads into COM and VΩHz and select the function.
Compare Marmonix clamp meters
| Model | Current | Max current | Max voltage | Safety | Counts | Extras |
|---|---|---|---|---|---|---|
| MCA-212 | AC + DC | 1200 A | 1000 V DC / 750 V AC | CAT IV 600 V | 6000 | µA input, 9.999 MHz, peak hold |
| MCA-206 | AC + DC | 600 A | 600 V | CAT III 600 V | 6000 | Inrush, NCV, flashlight |
| MCA-204 | AC only | 600 A | 600 V | CAT III 600 V | 4000 | Inrush, NCV, flashlight |
Need more than 1200 A or power readings? See the power quality analyzers.

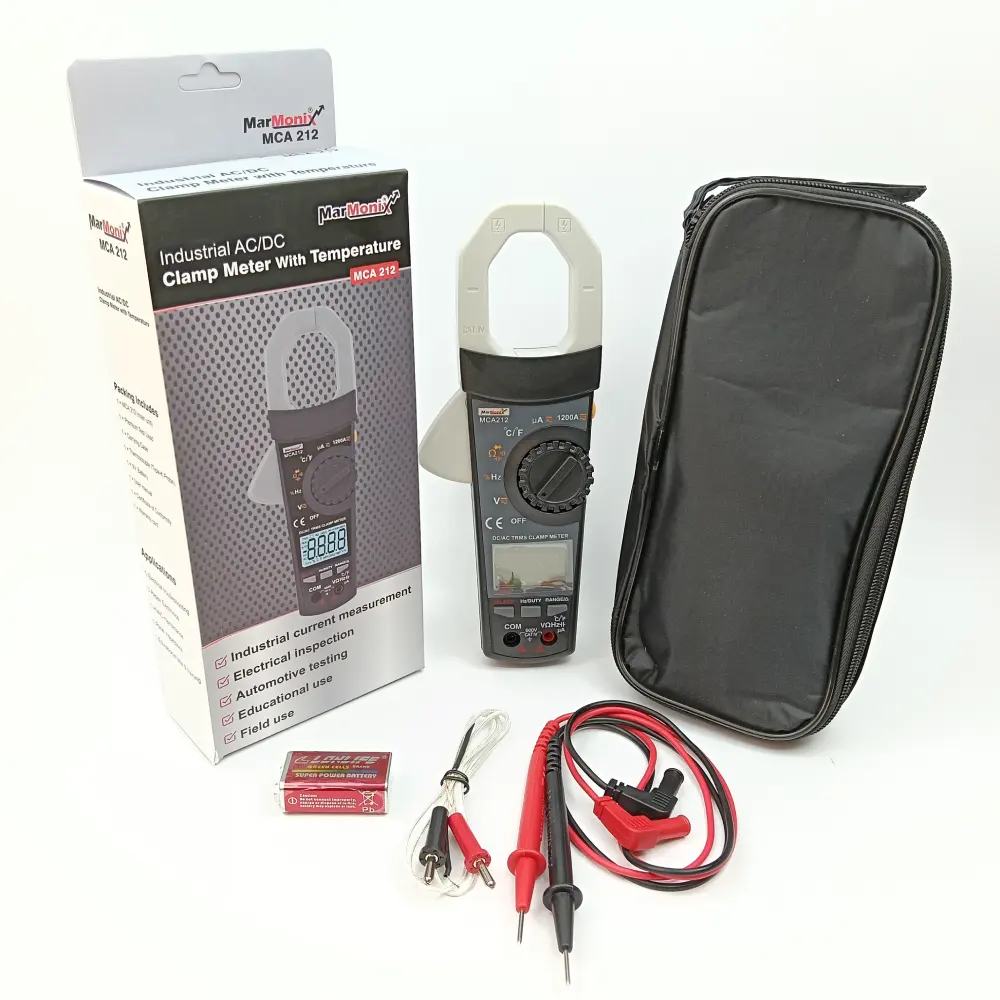

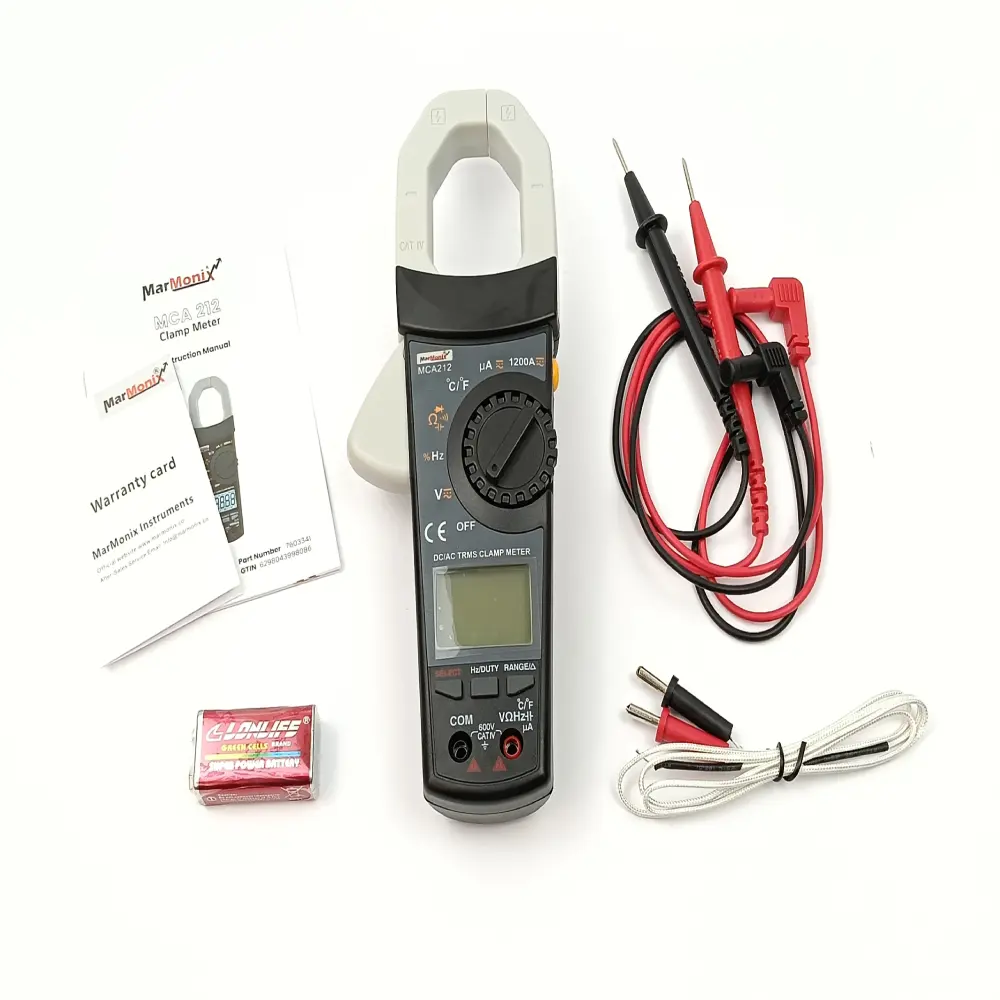

What’s in the box

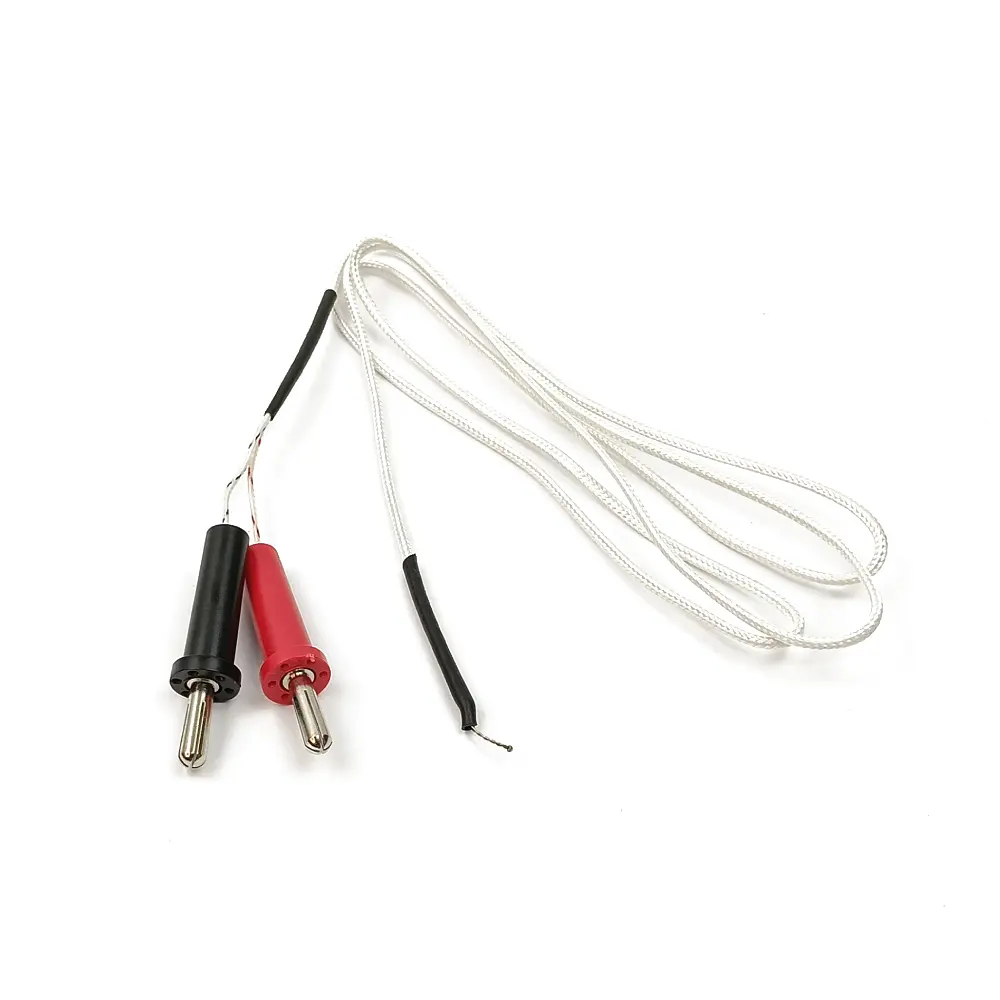

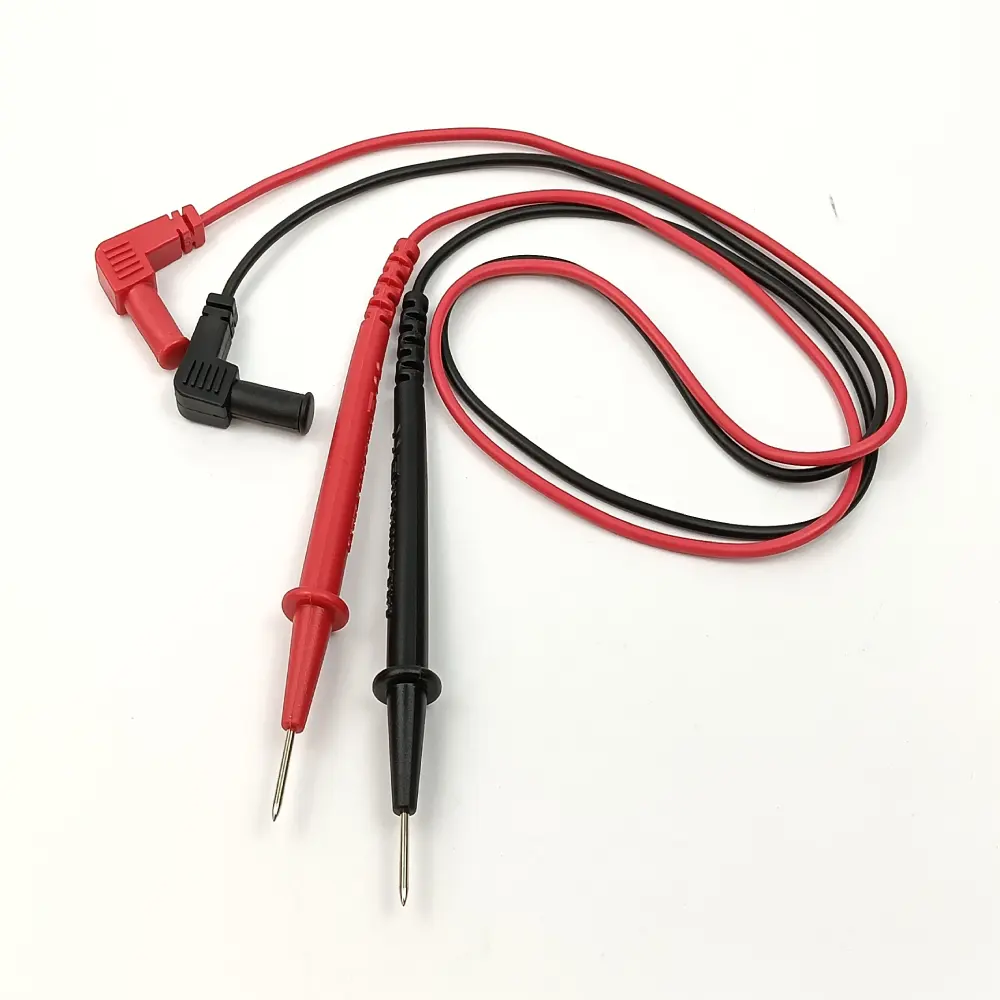

1 × MCA-212 main unit, 1 × premium test lead set, 1 × carrying case, 1 × Type-K thermocouple probe, 1 × 9 V battery, user manual, certificate of conformity, warranty card.
MCA-212 clamp meter: FAQ
Does the MCA-212 measure DC current?
Yes. It clamps both AC and DC current up to 1200 A (60 A / 600 A / 1200 A ranges, ±(2.0% + 30)), so it suits solar PV strings, battery banks, UPS and DC drives as well as AC feeders.
Is the MCA-212 True RMS?
Yes. True RMS gives correct AC readings on distorted waveforms from VFDs, LED drivers, UPS and other non-linear loads.
What safety category is the MCA-212 rated for?
The meter is marked CAT IV 600 V, which covers work at the origin of the installation, such as main distribution boards, within 600 V.
Can it measure small currents such as a 4–20 mA loop?
Yes, through the test leads. The µA input reads up to 6000 µA AC/DC at ±(1.2% + 3) DC. For a full 4–20 mA loop, a meter with a mA range such as the MMU-112 is the better choice.
What battery does it use and what is in the box?
One 9 V (6F22) battery. The box includes the MCA-212, premium test leads, carrying case, Type-K thermocouple, 9 V battery, user manual, certificate of conformity and warranty card.
What warranty does it have, and do you deliver in the UAE and GCC?
Marmonix covers the MCA-212 with a 2-year warranty (consumables such as fuses and batteries excluded). We supply across the UAE, Saudi Arabia, Oman and the GCC; contact us for a quote.
specifications
specifications
| Function | Range | Accuracy |
|---|---|---|
| DC Voltage | 600 mV / 6 V / 60 V / 600 V / 1000 V | ±(0.5%+3) |
| AC Voltage | 600 mV / 6 V / 60 V / 600 V / 750 V | ±(1.0%+3) |
| DC Current | 600 μA / 6000 μA | ±(1.2%+3) |
| AC Current | 600 μA / 1000 A / 1200 A | ±(2.0%+30) |
| Resistance | 600 Ω – 60 MΩ | ±(0.5%+3 to 1.5%+3) |
| Capacitance | 9.999 nF – 9.999 mF | ±(2.0%+5 to 5.0%+20) |
| Frequency | 99.99 Hz – 9.999 MHz | ±(0.1%+2) |
| Duty Cycle | 1% – 99% | ±(0.1%+2) |
| Temperature | –20 °C to +1000 °C | ±(2.5%+5) |
| Diode/Continuity | Yes | |
| Display | 6000 counts LCD with backlight | |
| Power Supply | 1 × 9 V (6F22) battery | |
| Dimensions | 240 × 90 × 45 mm | |
| Safety Rating | CAT IV 600 V | |
Downloads
