Marmonix MVS-432-6 Two-Way Video Borescope

The Marmonix MVS-432-6 articulating endoscope steers a 6 mm IP67 camera tip 360° in two directions on a 2 m cable and shows a 2 MP image on a 4.3-inch IPS screen, for inspection ports too small for an 8.5 mm probe. See all Marmonix video borescopes, or compare the MVS-432-8H with an 8.5 mm probe.

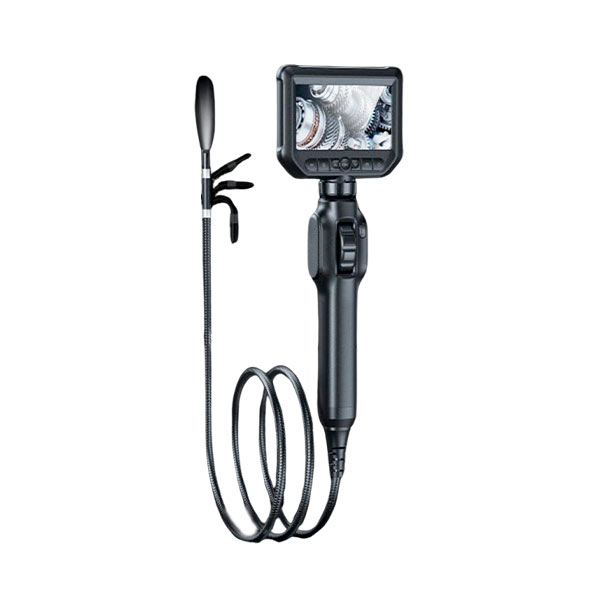

Industrial Endoscope Camera MVS-432-6

The MVS-432-6 Industrial Endoscope Camera stands out as an essential tool for professionals requiring precision in their inspection tasks. With a 2MP camera, this device ensures high-resolution imaging, capturing detailed and clear visuals critical for identifying issues in complex industrial contexts. The standout feature of this model is its 6mm probe diameter, which is particularly suited for inspections in extremely narrow or confined spaces, providing access where larger probes cannot reach.

This model comes equipped with a 2-meter cable, offering a balance between flexibility and reach. This length is ideal for navigating through and inspecting a wide range of environments, from intricate machinery components to winding pipelines, without compromising maneuverability or the thoroughness of the inspection.

With a depth of field ranging from 2 to 10cm, the camera allows for focused inspections within this range, making it highly effective for close-up examinations. This feature is crucial for spotting defects, obstructions, or wear and tear that could impact the performance of the equipment being inspected.

Industrial Endoscope Camera MVS-432-6 specifications:

Key specifications of the MVS-432-6 include:

• Pixel: 2MP.
• Probe diameter:6mm
• Length: cable 2m
• Monitor: 4.3 inch IPS screen
• Depth of field: 2-10cm
• Image Resolution: 1920*1080(JPG)
• Video Recording: 1280*720(AVI)

Buying guide: Read our video borescope buyer’s guide.

Questions about the MVS-432-6 articulating endoscope

What is the MVS-432-6 used for?

Use the MVS-432-6 for close visual checks inside engines, machinery and small pipes where the access hole is too narrow for an 8.5 mm probe; its 6 mm tip steers 360° in two directions so you can aim the camera at the surface you need to see.

What photo and video resolution does the MVS-432-6 record?

It saves photos at 1920×1080 (JPG) and video at 1280×720 (AVI), at 15–25 FPS with a 70° viewing angle and a 2–10 cm depth of field.

MVS-432-6 or MVS-432-8H: which should I choose?

Choose the MVS-432-6 when the access port is under about 8.5 mm, and the MVS-432-8H when it is wider. Both have a 2 m cable, 360° two-way steering, a 2 MP camera and a 4.3-inch IPS screen; the difference is the 6 mm versus 8.5 mm probe.

Case study: steering a camera through narrow inspection ports

Small inspection ports on engines, gearboxes and compact machinery often lead into cavities where a fixed-direction camera only shows the wall straight ahead.

An articulating endoscope solves this with a slim 6 mm IP67 tip that the operator steers in two directions while watching the 4.3-inch screen. With a 2–10 cm depth of field, the camera focuses on close surfaces such as blade edges, cylinder walls or weld roots behind a bend.

In a typical maintenance check, the technician enters through the existing port, sweeps the tip across the internal surfaces, and records photos or video of wear, deposits or foreign objects, so the decision to strip the unit rests on images rather than guesswork.
