Marmonix MVS-432-8H (MVS432-8H) Articulating Endoscope, 8.5 mm Steerable Tip, 2 m Cable

The Marmonix MVS-432-8H articulating borescope (also typed MVS432-8H or MVS 432 8H) steers its 8.5 mm single-lens camera tip through 360° in two directions at the end of a 2 m semi-rigid cable, so you can look sideways and back inside a cavity instead of only straight ahead. The 2 MP camera is rated IP67 and feeds a 4.3-inch IPS screen on the handle; photos are saved at 1920 × 1080 (JPG) and video at 1280 × 720 (AVI), at 15–25 frames per second. Sharp focus sits between 2 and 10 cm from the lens, the field of view is 70°, and the rated working range is −10 to 50 °C. Compare the other Marmonix video borescopes, or use the video borescope buying guide to match probe size and cable length to the job.

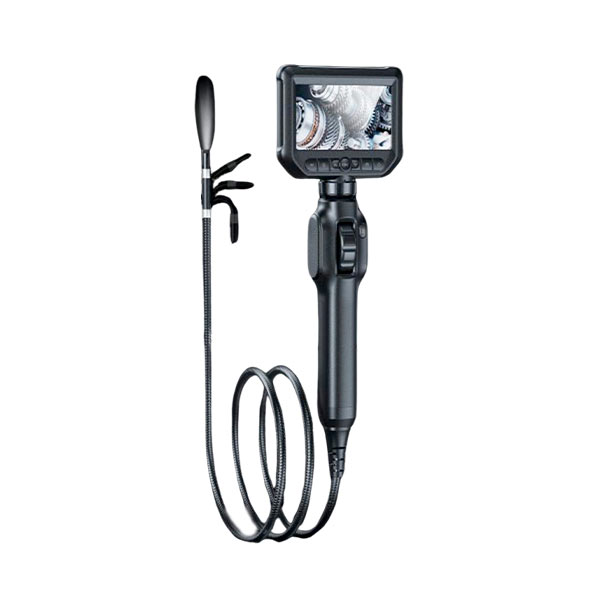

Industrial Endoscope Camera MVS-432-8H

The MVS-432-8H Industrial Endoscope Camera is a compact and efficient tool designed for intricate visual inspections in industrial environments. It is equipped with a high-resolution 2MP camera that captures sharp images at 1920*1080 (JPG) and records videos at 1280*720 (AVI), providing clear and detailed visuals crucial for accurate assessments.

The device features an 8.5mm probe diameter, making it ideal for accessing tight spaces without compromising the quality of the inspection. The probe is attached to a durable 2-meter cable, offering extended reach and flexibility in navigating through complex structures.

Viewing the captured visuals is a pleasure on the 4.3-inch IPS screen, known for its wide viewing angles and vibrant display. The screen ensures that images and videos are easily viewable under various lighting conditions, enhancing the user experience.

The MVS-432-8H boasts a depth of field ranging from 2 to 10cm, allowing for precise focus on objects within this range, which is particularly beneficial for close-up inspections. The 70° viewing angle of the camera provides a broad perspective of the inspection area, ensuring comprehensive coverage.

This endoscope camera is a valuable tool for professionals in fields such as manufacturing, automotive, aerospace, and building maintenance, where detailed and accurate visual inspections are critical for operational success and safety.

Industrial Endoscope Camera MVS-432-8H specifications:

• Pixel: 2MP.
• Probe diameter:8.5mm
• Length:cable 2m
• Monitor: 4.3 inch IPS screen
• Image Resolution: 1920*1080(JPG)
• Video Recording: 1280*720(AVI)
• Depth of field: 2-10cm

Buying guide: Read our video borescope buyer’s guide.

Case study: looking around the corner inside a gearbox housing

A maintenance fitter hears a new noise from an enclosed gearbox and wants to see the gear teeth before deciding whether to strip it. The only way in is a small oil-fill or inspection port, and the teeth face sideways to that opening, so a camera that only looks forward would show the opposite wall.

With a steerable 8.5 mm tip on a 2 m cable, the check goes like this:

• Drain and isolate first: the machine is locked off; the IP67 camera tolerates residual oil and moisture, but rotating parts must be stopped.
• Steer, then settle: the semi-rigid cable is fed through the port, the tip is bent toward the gear face and brought to 2–10 cm, where the image is in focus.
• Turn the shaft by hand between shots: each tooth is brought into view in turn, with a 1920 × 1080 photo of anything chipped, pitted or scored.
• Keep a short clip: a 1280 × 720 AVI recording of the sweep gives the planner the whole picture, not just single frames.

The photos and clip decide whether the gearbox runs to the next planned stop or is opened now, without dismantling it just to look.

MVS-432-8H (MVS432-8H): buyer questions

Does the MVS-432-8H tip really articulate?

Yes. The MVS-430 series datasheet lists the MVS-432-8H with 360° two-way steering on an 8.5 mm single-lens tip, controlled from the handle.

How long is the MVS-432-8H cable, and is it flexible?

It is 2 m long and semi-rigid, so it holds a shape while you push it in. The same 8.5 mm steerable head is also listed with 1 m and 3 m cables.

Can the MVS-432-8H camera get wet?

The camera is rated IP67, which covers dust and short immersion, and the datasheet gives a working temperature of −10 to 50 °C. It is not meant for hot engines or live electrical parts.
