Marmonix MVS-210-8H 10 m Industrial Endoscope

The Marmonix MVS-210-8H video borescope puts an 8.5 mm single-lens IP67 camera on a 10 m hard cable, the longest reach in the MVS-200 series, and shows a 2 MP image on a 4.3-inch IPS screen lit by 8 adjustable LEDs. See all Marmonix video borescopes, or choose the MVS-205-8H 5 m video borescope for shorter runs.

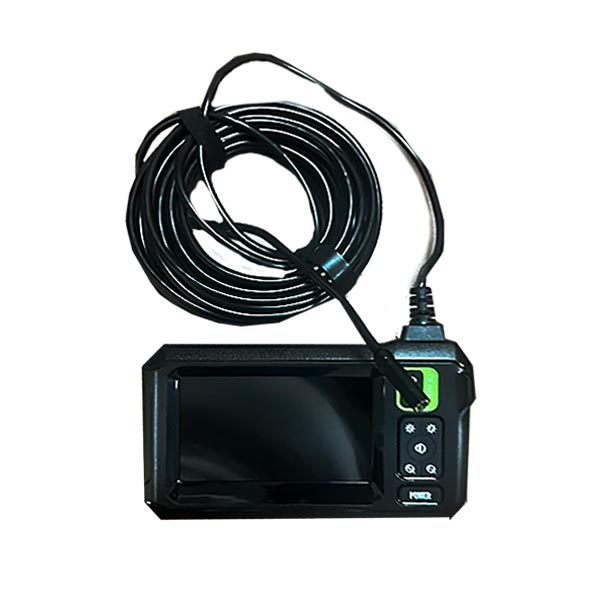

Marmonix Industrial Endoscope Camera MVS-210-8H

The MVS-210-8H videoscope, with its flexible design and standard dimensions, is an ideal tool for precise inspections in confined industrial spaces. With a probe diameter of 8.5mm and a length of 10 meters, this device allows users to effectively penetrate deep into equipment and obtain clear images from inside. These features are particularly useful for engineers and technicians working in various industrial fields.

Advantages of Using the Marmonix MVS-210-8H

The use of the MVS-210-8H in various industries, including automotive, industrial equipment maintenance, and HVAC systems, offers numerous benefits. This device quickly identifies problems and prevents potential failures, ultimately increasing efficiency and reducing costs.

Applications of the Videoscope:

Where the MVS-210-8H videoscope is used:

• Industrial: Used in various industries such as automotive, manufacturing, and refineries for inspecting and diagnosing internal equipment, pipes, and machinery.
• Maintenance and Repair: Technicians use the videoscope to inspect car engines, HVAC systems, and other technical equipment to identify and resolve issues.
• Medical: In some medical cases, specialized versions of videoscopes (endoscopes) are used for internal body examinations and performing minimally invasive surgeries.
• Security and Rescue: Videoscopes are used in rescue and security operations to inspect under rubble or in inaccessible areas.
• Plumbing and Construction: In these fields, videoscopes are used to inspect inside pipes, walls, and ducts to identify problems such as leaks, blockages, or structural defects.

This device, with its special features such as the ability to view difficult angles, suitable lighting in dark spaces, and the capability to store images and videos, is a highly practical tool in many industries and professions.

Technical Specifications of the Marmonix MVS-210-8H Videoscope

Technical specifications of the MVS-210-8H include:

• Flexible videoscope
• Probe diameter: 8.5mm
• Cable length: 10 meters
• Equipped with a color display
• Pixel: 2MP
• Monitor: 4.3-inch IPS display
• Depth of field:2-10cm
• Camera waterproof: IP67
• Viewing Angle:70°
• Temperature:-10℃-50℃℃
• Battery capacity:2000mAh/3.5h
• Light: 8 adjustable brightness LEDs
• Charge port: Type-C
• Certification: CE/RoHS/ISO9001
• Warranty: 1 Year

Buying guide: Read our video borescope buyer’s guide.

Questions about the MVS-210-8H video borescope

What is the MVS-210-8H best used for?

Use the MVS-210-8H for long-reach visual checks inside pipes, ducts and deep machine cavities, where its 10 m cable goes further than the 1 m MVS-201-8H and the 5 m MVS-205-8H in the same series.

Does the MVS-210-8H tip articulate?

No, the MVS-210-8H has a fixed single-lens 8.5 mm camera on a hard cable, and the MVS-200 series datasheet lists no steering. If you need to steer the tip, look at the MVS-430 series, such as the MVS-431-8H with 360° two-way steering.

MVS-210-8H or MVS-205-8H: which should I choose?

Choose the MVS-210-8H when you need 10 m of cable and the MVS-205-8H when 5 m is enough. Both use the same 8.5 mm IP67 camera, 4.3-inch IPS screen and 2000 mAh battery (about 3.5 h); the datasheet lists a gross weight of 740 g for the MVS-210-8H against 547 g for the MVS-205-8H.
