Marmonix MEF-8300 Insertion Mag Flow Meter

SKU: MEF-8300 Category:

Marmonix Insertion type electromagnetic flow meter MEF-8300 comprise an electromagnetic sensing probe in ABS or Polypropylene mounted on the end of a support rod.

WhatsApp
Email
Telegram
Description

The Marmonix MEF-8300 insertion electromagnetic flow meter measures conductive liquids in DN100–DN3000 pipes with a probe on a support rod (ABS or polyurethane tip, SUS316L or Hastelloy electrodes), rated at 1.5% accuracy up to 15 m/s when conductivity exceeds 5 µS/cm. It offers integral or remote transmitters, 4–20 mA/pulse output, RS485 (HART optional), IP65 standard (IP68 remote optional) and hot-tap style install for large lines. Browse all Marmonix flow meters, or see the MEF-8700 partially filled pipe electromagnetic flow meter when the line may run only partly full.

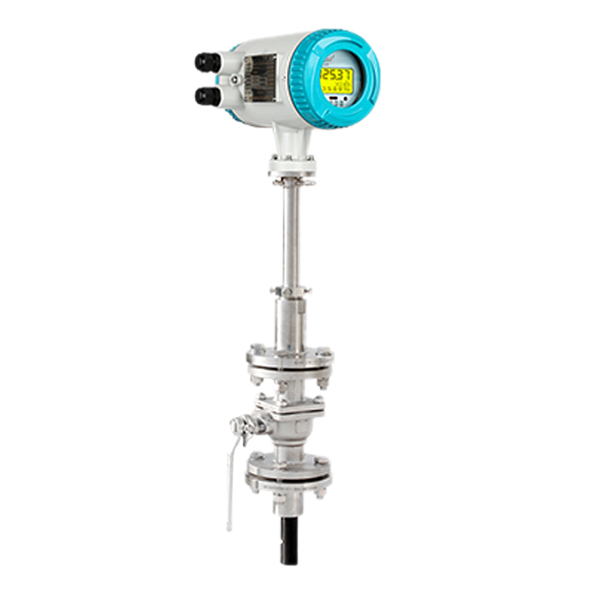

Insertion Type Electromagnetic Flow Meter MEF-8300

Marmonix Insertion type electromagnetic flow meter MEF-8300 is a type of electromagnetic flow meter has been used throughout industries for more than 50 years. Marmonix Insertion type electromagnetic flow meter MEF-8300 comprise an electromagnetic sensing probe in ABS or Polypropylene mounted on the end of a support rod. One piece insertion type electromagnetic flow meter can be used for pipe sizes between DN100mm and DN3000mm. It is an economic option for large pipeline applications.

Insertion Type Electromagnetic Flow Meter MEF-8300 Features

The MEF-8300 offers:

  • Insertion type electromagnetic flow meter provide more economical option for large pipelines flow measurement, while preserving the advantages of common type magnetic flow meter.
  • Reliable Measurement- Marmonix insertion electromagnetic flow meter with simple structure and no moving parts. It is totally independent from the pressure, temperature and mechanical vibrations, density, viscosity etc. No scheduled maintenance required.
  • Easy Installation- Marmonix insertion electromagnetic flow meter can achieve online installation (hot-tapping).
  • Submersible Available- Marmonix insertion electromagnetic flow meter can make as remote type with IP68 protection grade and with submersible sensors for complicated conditions.
  • Variable Outputs- Marmonix insertion electromagnetic flow meter support 4-20mA, pulse, RS485, GPRS and prefabs available.

Insertion Type Electromagnetic Flow Meter MEF-8300 Specifications:

Size DN100mm-DN3000mm
Nominal Pressure 1.6Mpa
Accuracy 1.5%
Probe ABS, Polyurethane
Electrode SUS316L, Hastelloy B, Hastelloy C
Structure Type Integral type, remote type
Medium Temperature -20~+80degC
Ambient Temperature -20~+60degC
Ambient Humidity 5~100%RH(Relative humidity)
Measuring Range Max 15m/s
Conductivity >5us/cm
Protection Class IP65(Standard); IP68(Optional for remote type)
Process Connection 2” Thread(Standard), 2” Flange(Optional)
Output Signal 4-20mA/Pulse
Communication RS485(Standard), HART(Optional), GPRS/GSM(Optional)
Power Supply AC220V(Can be used for AC85-250V)
DC24V(Can be used for DC20-36V)
DC12V(Optional), Battery powered 3.6V(Optional)
Power Consumption <20W
Alarm Upper Limit Alarm / Lower Limit Alarm
Self-diagnosis Empty Pipe Alarm, Exciting Alarm
Explosion Proof ATEX



How insertion electromagnetic flow meters are used on large water mains

Water and wastewater mains above a few hundred millimetres are costly to shut down for a full-bore mag meter spool, yet utilities still need flow for balancing, billing checks and pump control.

An insertion electromagnetic meter places a magnetic probe through a small tapping so electrodes read local velocity by Faraday induction; the converter scales that to pipe flow for conductive liquids (typically above about 5 µS/cm). Insertion mags are generally chosen as an economical option on large DN lines and hot-tap installs when cutting out a section is impractical, while full-bore meters remain preferred for the highest accuracy duties.

Crews usually hot-tap a 2-inch connection, insert the probe to the published depth, and wire 4–20 mA or pulse into the SCADA system so large-main flow can be monitored without a long outage.

Questions about the MEF-8300 insertion electromagnetic flow meter

What liquids can the MEF-8300 measure?

The MEF-8300 is an electromagnetic insertion meter for conductive liquids with conductivity above 5 µS/cm, such as water and many wastewater streams, up to a published 15 m/s. Non-conductive oils and gases are outside this meter class.

What pipe sizes suit the MEF-8300?

The MEF-8300 covers DN100–DN3000 with a 2-inch thread standard process connection (2-inch flange optional) and 1.6 MPa nominal pressure. It is positioned as an economic option for large pipelines versus a full-bore mag spool.

MEF-8300 or MEF-8700: which should I choose?

Choose the MEF-8300 when the pipe runs full and you want a hot-tap insertion mag for DN100–DN3000 conductive liquids, and the MEF-8700 when the application is a partially filled pipe. Confirm conductivity, pipe DN and whether the line can be hot-tapped when you ask for a quote.
