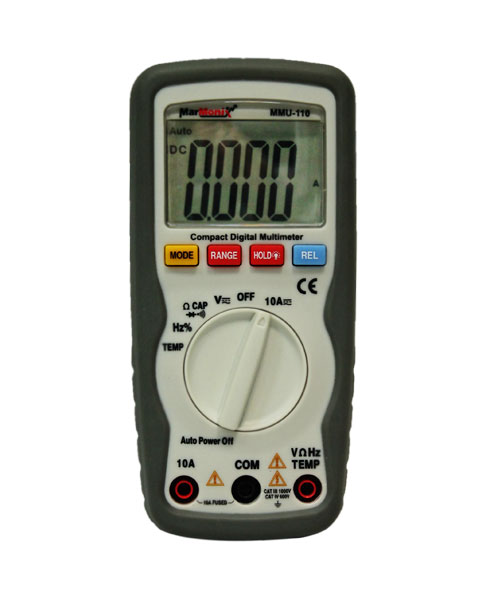

Marmonix MMU-110 compact digital multimeter with 4000-count LCD and rotary dial

Marmonix MMU-110 Compact Auto-Ranging Multimeter

Name: MMU-110 Digital Multimeter | 4000-Count, 600 V | Marmonix
Brand: Marmonix
SKU: MMU-110

SKU: MMU-110 Category: Multimeters

(No Reviews)

The MMU-110 is a compact digital multimeter with a double-molded housing, 4000-count high-contrast LCD and CAT III 1000 V rating for dependable service testing.

Description

The Marmonix MMU-110 digital multimeter is a compact 4000-count auto-ranging meter that measures AC and DC voltage up to 600 V and AC and DC current up to 10 A. It also reads resistance to 40 MΩ, capacitance to 100 µF, frequency to 10 MHz, duty cycle to 99.9%, and temperature to 760 °C (1400 °F) with a Type K thermocouple.

Compare it with other models in digital multimeters, or see the MMU-112 True RMS multimeter if you need 6000 counts, 1000 V DC, or 20 A. Our digital multimeter buyer’s guide explains how to choose.

MMU-110 technical specifications

Factory technical specifications for the MMU-110 are listed in the table below:

Parameter	Range	Accuracy
DC Voltage	600 V	±(1.2% of reading + 2 digits)
AC Voltage	600 V	±(1.5% of reading + 3 digits)
DC Current	10 A	±(2.5% of reading + 5 digits)
AC Current	10 A	±(3.0% of reading + 7 digits)
Resistance	40 MΩ	±(1.2% of reading + 2 digits)
Capacitance	100 µF	±(3.0% of reading + 5 digits)
Frequency	10 MHz	±(1.2% of reading + 3 digits)
Temperature	760 °C / 1400 °F	±(3% of reading + 5 °C / 9 °F)
Duty Cycle	99.9%	±(1.2% of reading + 2 digits)

MMU-110 digital multimeter features and kit

Everyday features of the MMU-110:

Oversized high-contrast 4000-count LCD with function indication
Auto-ranging, data hold, and auto power-off
Type K temperature input, with a thermocouple in the kit
Double-moulded plastic housing
In the box: test probes, thermocouple, batteries, soft carrying case, and user’s manual

Questions about the MMU-110 multimeter

Can the MMU-110 measure temperature?

Yes, it measures up to 760 °C (1400 °F) through its Type K input, and a thermocouple is included in the box.

What is the highest voltage the MMU-110 reads?

It reads up to 600 V on both AC and DC; for 1000 V DC, choose the MMU-112.

MMU-110 or MMU-112: which should I choose?

Choose the MMU-110 for compact service work up to 600 V and 10 A with Type K temperature; choose the MMU-112 for True RMS, a 6000-count display, 1000 V DC, and current up to 20 A.

Datasheet
