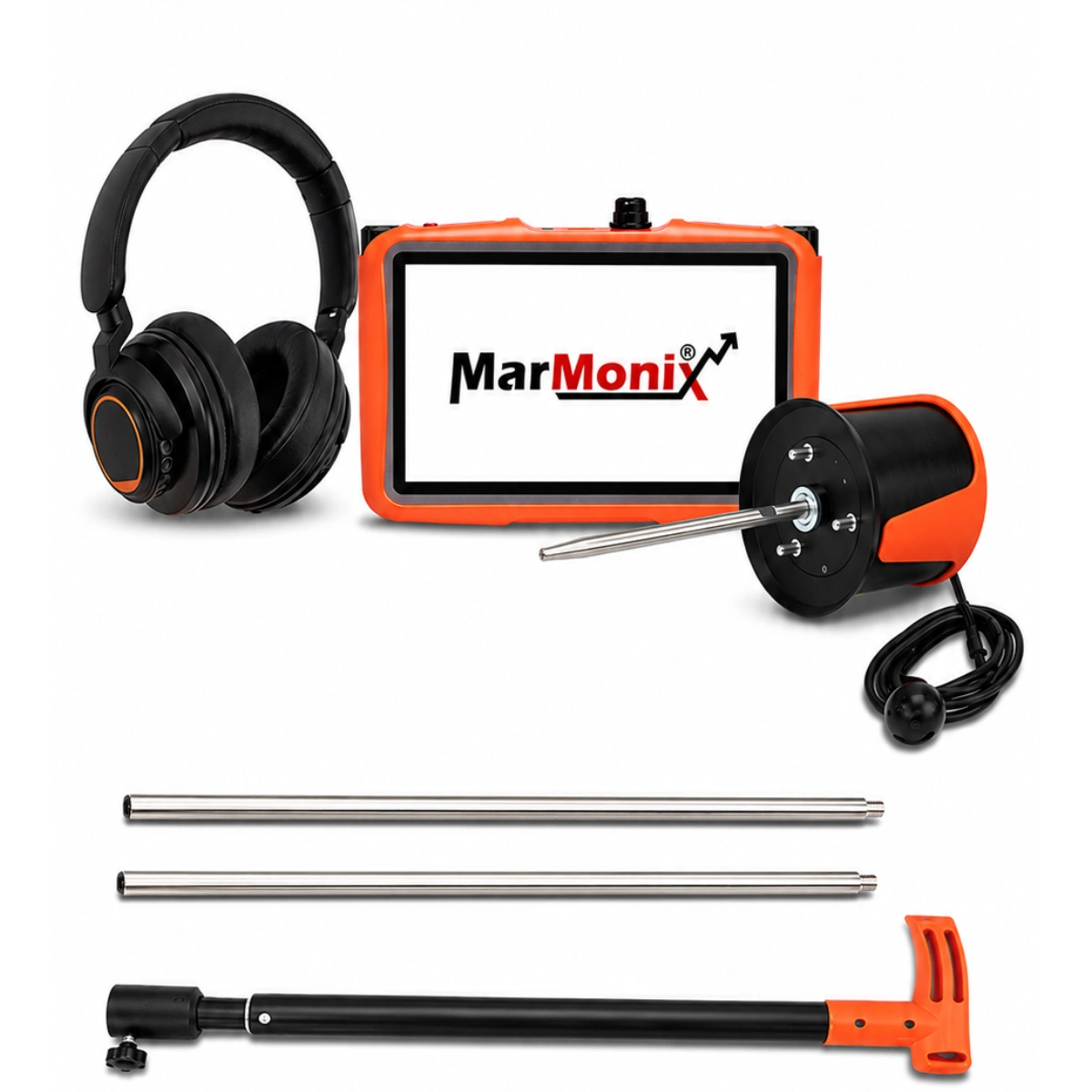

Marmonix MWL 500 Acoustic Pipe Leak Detector

The Marmonix MWL 500 water leak detector is an acoustic instrument that pinpoints leaks on buried outdoor pressure pipes down to 5.0 m, using a medium sensor with 0.001 mV signal accuracy, a 1–10,000 Hz frequency range and a 7-inch HD touch screen that shows the leak spectrum. See the Marmonix water leakage detectors range.

The MarMonix MWL 500 Water Pipeline Leakage Detector is a highly advanced acoustic instrument engineered to locate underground water leaks with unparalleled precision. Designed specifically for outdoor pipeline networks, this robust device can detect pressure pipe leaks at depths of up to 5.0 m. By utilizing advanced acoustic filtering, the device effectively isolates and filters out environmental background noise, allowing operators to pinpoint even the smallest leakages in complex piping systems.

Built for extended fieldwork, the MarMonix MWL 500 combines an ultra-sensitive medium sensor with a highly intuitive user interface. The bright 7-Inch HD Digital Touch LCD Screen displays a clear visual spectrum, visually guiding you directly to the exact location of the leaking pipe. Weighing just 0.7 kg and featuring a 15-hour rechargeable battery life, it ensures that maintenance teams can conduct full-day inspections without fatigue or power interruptions. Below, you will find detailed insights into the key features, technical specifications, and specialized applications that make this device a crucial asset for your pipeline management operations.

Key Features of the MarMonix MWL 500

Here are the core features of the MarMonix MWL 500, highlighting its superior acoustic filtering, high-sensitivity detection, dual operation modes, and seamless reporting capabilities:

• Advanced Acoustic Filtering: Designed specifically for leaking pressure pipes, the system actively filters out environmental noise to help pinpoint the smallest leakage.

• High-Sensitivity Sensor: The built-in medium detection sensor is capable of an incredible 0.001 mV accuracy, easily capturing deep underground acoustic signals.

• Dual Operating Modes: Operators can seamlessly switch between “General Detection” (census mode) to scan large areas and “Locating Mode” to identify the most potential leaking area.

• Clear Visual Spectrum: The digital LCD display shows a real-time spectral signal, acting as a visual guide to the exact location of the pipe leak.

• Exportable Reports: Locating results and on-screen pictures can be easily exported for professional report making and documentation.

MarMonix MWL 500 Technical Specs & Hardware

The MarMonix MWL 500 features rugged internal hardware paired with a highly interactive interface, ensuring reliable operation even in harsh outdoor environments.

Hardware details of the MWL 500:

• High-Definition Interface: All controls and visual spectrums are accessed via a 7-Inch HD Digital Touch LCD Screen.

• Broad Frequency Range: The detector operates effectively across a wide frequency range of 1-10,000 Hz.

• Adjustable Acoustics: Features 10 levels of gain/volume adjustment to fine-tune the audio feedback based on environmental conditions.

• Extended Power: Runs on a rechargeable Lithium Battery (USB 5V 2A), providing approximately 15 hours of continuous working time.

• Durable & Portable: The main unit weighs only 0.7 kg and is rated to operate in extreme temperatures ranging from -20°C to +50°C.

MarMonix MWL 500 Applications

The MarMonix MWL 500 is meticulously designed to handle the core diagnostic processes required for outdoor utility maintenance.

Typical MWL 500 applications:

• Outdoor Pipeline Diagnostics: Specifically calibrated to measure and inspect outdoor pipeline infrastructures.

• Deep Underground Detection: Ideal for finding hidden leaks buried deep underground, supporting a maximum detection depth of 5.0 m.

• Professional Maintenance: Perfect for utility crews and plumbers who need to quickly locate leaks and export the data for professional reporting.

Questions about the MWL 500 water leak detector

Where can the MWL 500 find leaks?

The MWL 500 is designed for outdoor water pipelines and finds leaks on buried pressure pipes at depths of up to 5.0 m by picking up the leak noise with its medium sensor and filtering out background noise.

How long does the MWL 500 battery last?

The rechargeable lithium battery gives about 15 hours of work and charges over USB at 5 V 2 A. The main unit weighs 0.7 kg and works from -20 to +50 °C, and the kit includes noise-cancelling headphones, a telescopic pole and an aluminium flight case.

Should I use General Detection or Locating Mode on the MWL 500?

Use General Detection (census) mode to survey a length of pipeline and find the noisiest section, then switch to Locating Mode to narrow it down to the most likely leak point; the 10-level gain control helps on noisy sites.

Case study: finding a leak on a buried water main

In a typical leak search, a water utility or site maintenance team is losing treated water through leaks on buried pressure pipes that rarely show at the surface.

An acoustic leak detector picks up the sound of water escaping under pressure with a ground sensor and filters out environmental background noise. Its touch screen shows the signal and spectrum, so the operator can see where the leak noise is strongest rather than relying on hearing alone.

In the field, the operator walks along the pipe route, places the sensor at intervals, and compares readings point by point. The location with the highest leak signal marks where to excavate, which keeps the dig small and the repair targeted.
