Marmonix MRCD-1 Socket Tester – RCD Test, NCV & Voltage Display
- Wiring check: L/N/E indicators show correct wiring, missing neutral or earth, and reversed polarity
- Voltage display: L-N and E-N voltage, 0.1–250 V, 40 Hz–1 kHz
- RCD test: >30 mA trip test at 220 V ±20 V
- NCV: non-contact voltage detection with an audible alert
- Compact: 3-pin Type G plug, 65 × 65 × 60 mm, CE marked, 2 × AAA batteries, 2-year warranty
The Marmonix MRCD-1 socket tester plugs into a mains socket and shows on its screen whether the wiring is correct, the live-to-neutral and earth-to-neutral voltage, and whether the RCD trips on its >30 mA test. It also has a built-in non-contact voltage (NCV) detector for checking cables and switches before you touch them. It is a quick first-pass check for electricians, facility teams and homeowners in the UAE and GCC. See the other Marmonix electrical testers, or use a voltage detector for single-pole checks.
MRCD-1 socket tester: what it checks
- Wiring status: L, N and E indicators plus a reversed-polarity symbol show correct or faulty wiring at a glance
- Voltage display: L-N and E-N voltage, 0.1–250 V at 40 Hz–1 kHz, with a high-voltage indicator
- RCD trip test: >30 mA test current at 220 V ±20 V; press for under 3 s
- NCV detection: active at power-on, with a faster beep and power bar as the field gets stronger
- Low-battery indicator, running on 2 × AAA batteries

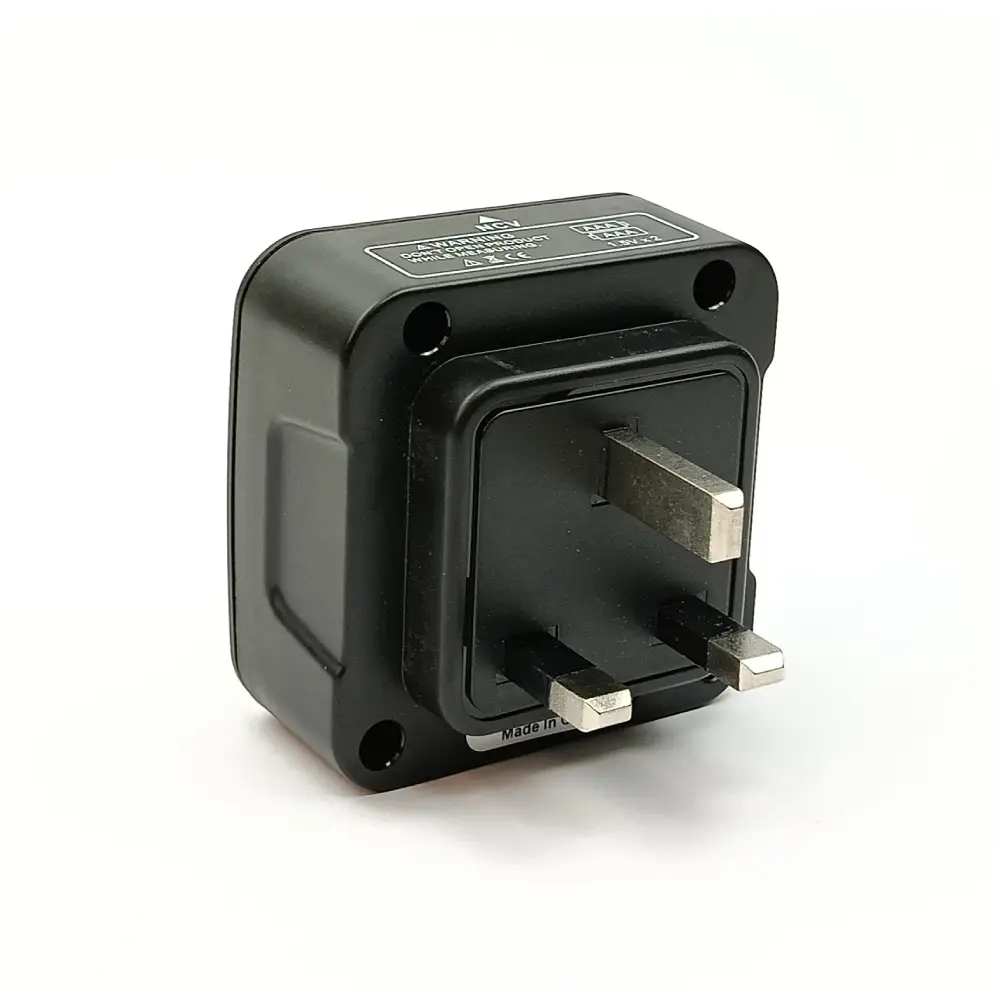

- 3-pin Type G plug (the UK-style socket used in the UAE), compact 65 × 65 × 60 mm body, CE marked
Wiring conditions shown by the MRCD-1
| Condition on the screen | What it means |
|---|---|
| Correct | Live, neutral and earth are connected correctly |
| Missing neutral | No neutral connection at the socket |
| Missing earth | No protective earth connection |
| Live / earth reversed | Live and earth conductors are swapped |
| Live / neutral reversed | Polarity is reversed |
| Live / earth wrong, earth missing | Live and earth are miswired and there is no earth |
| Missing live | No live supply at the socket |
| Live only | Only the live conductor is present |
MRCD-1 specifications
| Parameter | Value |
|---|---|
| Voltage test range | 0.1–250 V, 40 Hz–1 kHz |
| RCD test current | >30 mA |
| RCD work voltage | 220 V ±20 V |
| Display | L-N and E-N voltage, L/N/E indicators, reversed-polarity symbol, NCV symbol and power bar, high-voltage and low-battery indicators |
| Power supply | 2 × 1.5 V AAA batteries (work voltage 2.6–3.3 V) |
| Operating conditions | 0–40 °C, 20–75% RH |
| Storage conditions | −10–50 °C, 20–80% RH |
| Plug type | 3-pin Type G (UK-style) |
| Dimensions | 65 × 65 × 60 mm |
| Certification | CE |
| Part number / GTIN | 7603351 / 6298043998093 |
| Warranty | 2 years |
How to use the MRCD-1
- Plug the tester into the socket. Read the L, N and E indicators and the L-N and E-N voltage on the screen.
- If the wiring is correct, and only after switching off connected equipment and getting permission, press the RCD button for under 3 seconds. A working RCD trips.
- Reset the RCD. Then use NCV mode to screen nearby cables, switches and outlets before deeper fault-finding.
Clean the tester with a damp cloth only. For load and energy checks on plug-in appliances, see the Marmonix MMP-10 micro power monitor. For circuit measurements, use a digital multimeter.

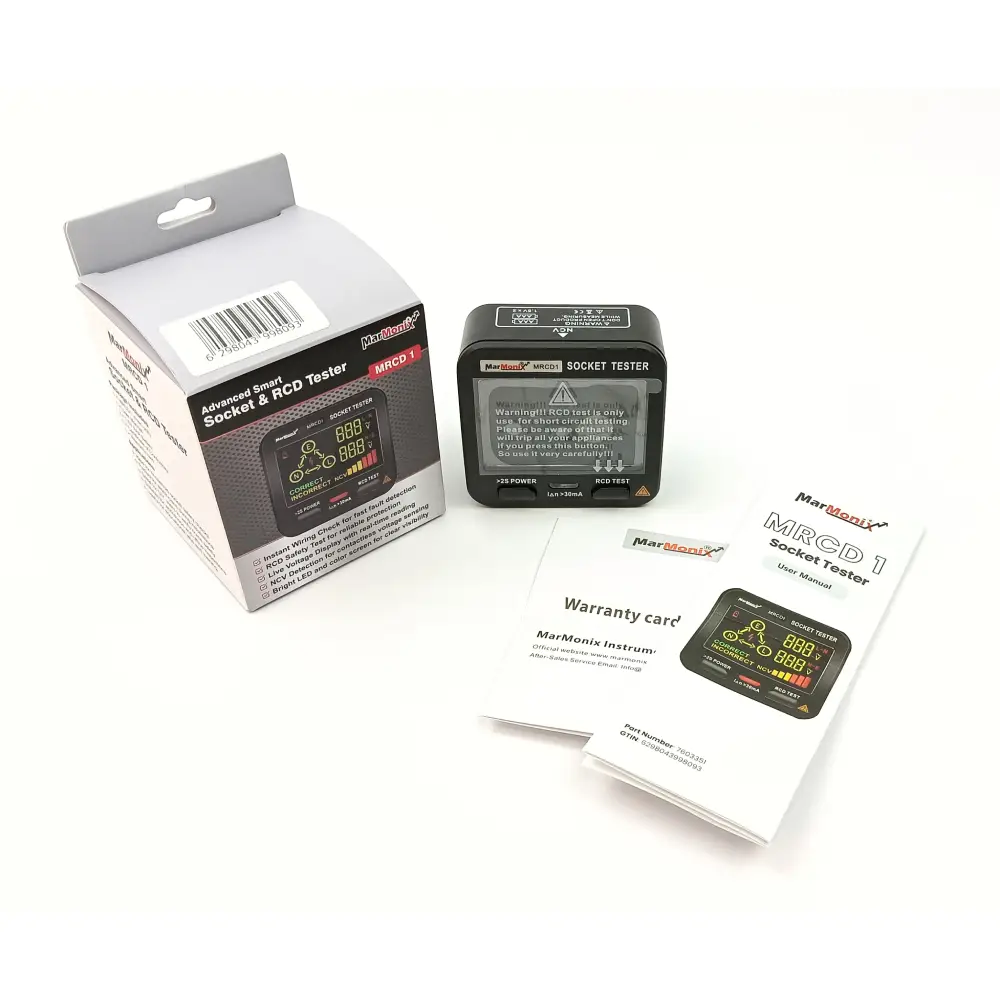

What’s in the box
- MRCD-1 socket tester
- 2 × AAA batteries
- User manual
- Certificate of conformity
- Warranty card
Case study: socket and RCD checks after a nuisance trip
When an RCD trips, the next job is to prove the socket wiring and confirm the residual-current protection still works, before you reset it and leave. With the MRCD-1 the electrician plugs in, reads the wiring status and voltages, runs the RCD trip test, and then uses NCV to screen neighbouring outlets, all with one plug-in tool. Open earth, reversed polarity or a missing neutral show up on the first pass without a separate meter.
Further reading: Electrical test and measurement instruments: the complete guide
MRCD-1 socket tester: common questions
Does the Marmonix MRCD-1 test RCDs?
Yes. With the tester plugged into a powered socket, press the RCD button for less than 3 seconds; a working RCD rated at 30 mA trips. The RCD test works at 220 V ±20 V. Switch off connected equipment and get permission before testing, because the test cuts power to the circuit.
Which wiring faults does the MRCD-1 show?
The screen shows correct wiring, missing neutral, missing earth, live and earth reversed, live and neutral reversed, live and earth wrong with earth missing, missing live, and live-only conditions, using the L, N and E indicators.
Does the MRCD-1 show the socket voltage?
Yes. It shows the live-to-neutral (L-N) and earth-to-neutral (E-N) voltage across a 0.1–250 V range at 40 Hz–1 kHz, with a high-voltage warning.
Can the MRCD-1 find live wires without plugging in?
Yes. NCV (non-contact voltage) mode is on as soon as you power the tester. Hold it near a cable or switch; the beeper speeds up and the bar indicator rises as the field gets stronger.
What power does the MRCD-1 use and what comes in the box?
It runs on 2 × 1.5 V AAA batteries, and a low-battery symbol tells you when to change them. The box has the tester, 2 AAA batteries, user manual, certificate of conformity and warranty card. Marmonix gives a 2-year warranty.
Is a socket tester a replacement for a full installation test?
No. A plug-in tester is a quick first check of wiring, voltage and RCD trip. Earth resistance and insulation resistance need dedicated instruments such as an earth resistance tester or an insulation tester.
| Brand |
Marmonix |
|---|---|
| Measurement functions |
AC voltage ,Non-contact voltage (NCV) ,RCD test ,Socket wiring check |
| Power source |
AAA batteries |
| Applications |
Electrical ,Residential |
| Voltage measurement range |
0-250 V |
| Mounting / format |
Plug-in |
