Marmonix MES 111 Automotive Fault Stethoscope

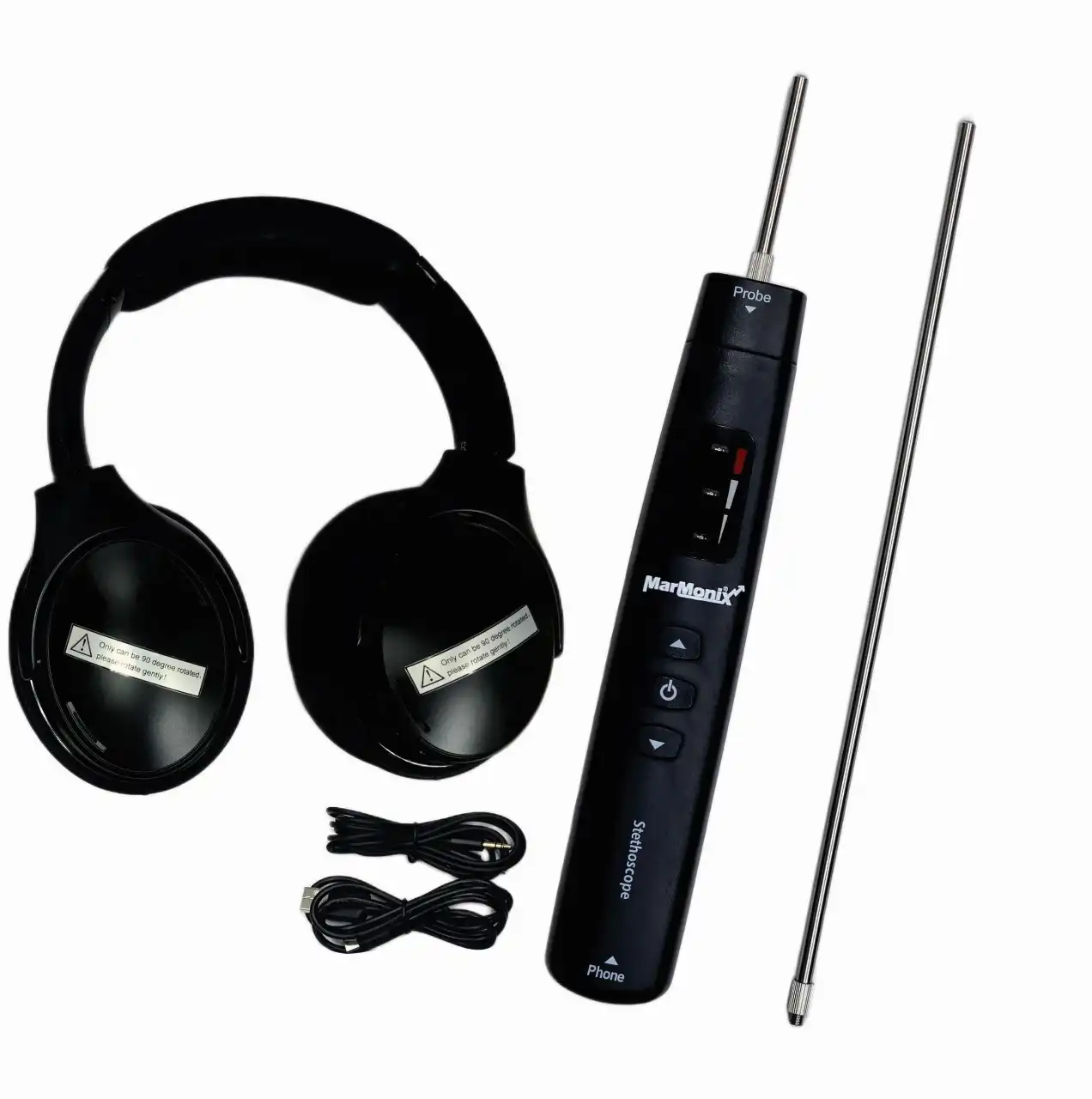

The Marmonix MES 111 electronic stethoscope listens for mechanical knocks and vibration from 30 Hz to 15 kHz with 32 adjustable volume stages, a short 70 mm probe and a long 280 mm probe, plus noise-canceling headphones. It runs about 30 hours on four AAA batteries and suits automotive, industrial machinery and HVAC checks. Browse all Marmonix accessories.

MarMonix MES 111 Automotive Stethoscope

The MarMonix MES 111 Electronic Stethoscope is a professional diagnostic instrument designed to help technicians, engineers, and maintenance specialists detect hidden mechanical issues before they turn into costly failures. With its wide frequency range from 30 Hz up to 15 kHz, the MES 111 allows you to capture both low-frequency knocking sounds and high-frequency vibrations with remarkable clarity.

Built for automotive repair, industrial machinery inspection, HVAC systems, pumps, compressors, and preventive maintenance programs, this tool gives professionals the ability to listen inside machines and identify faults at an early stage. By using advanced electronic amplification and high-sensitivity probes, the MES 111 transforms otherwise inaudible vibrations into clear, diagnostic signals you can trust.

Key Features & Benefits of MarMonix MES 111 Electronic Stethoscope

The MES 111 offers:

• Wide frequency detection (30 Hz – 15 kHz): Covers the entire range of mechanical noises, from deep knocks to subtle vibrations.

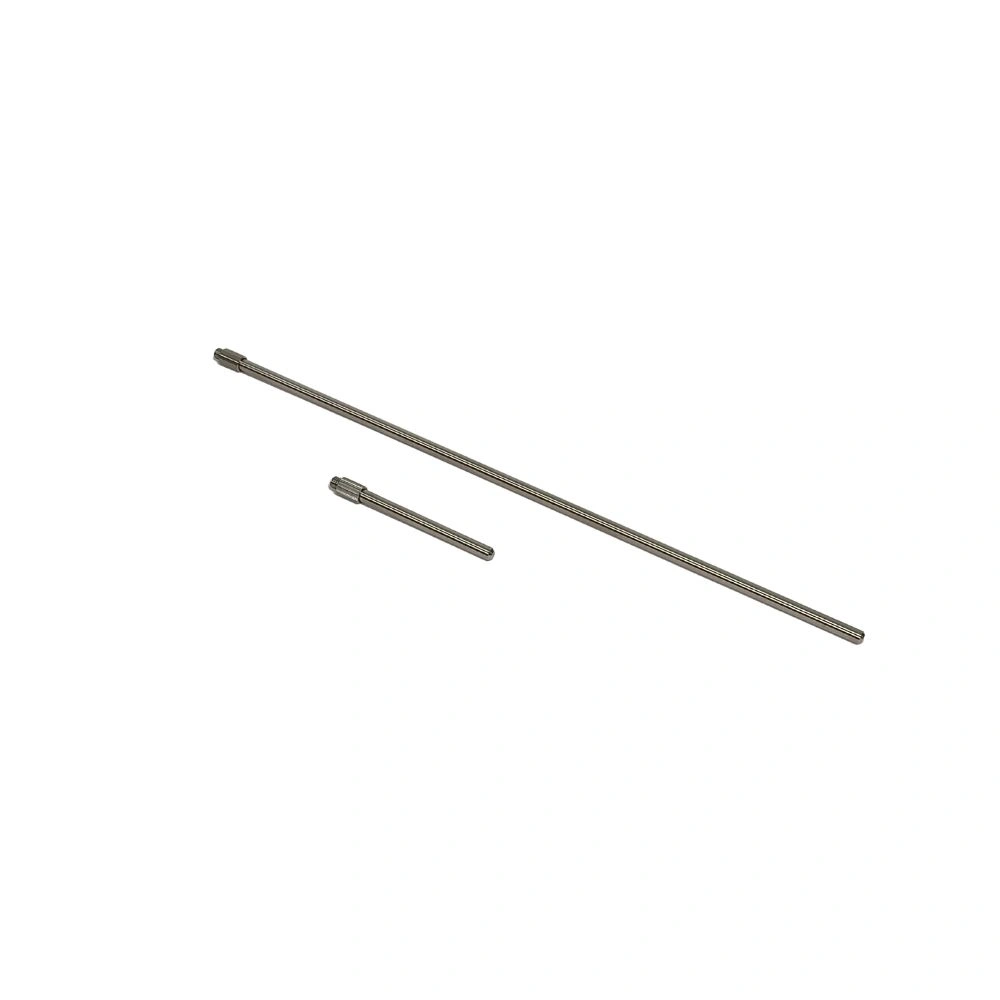

• Dual probes for versatility:
  • Short probe (70 mm) for quick, accessible inspection.
  • Long probe (280 mm) for deeper or rotating parts.

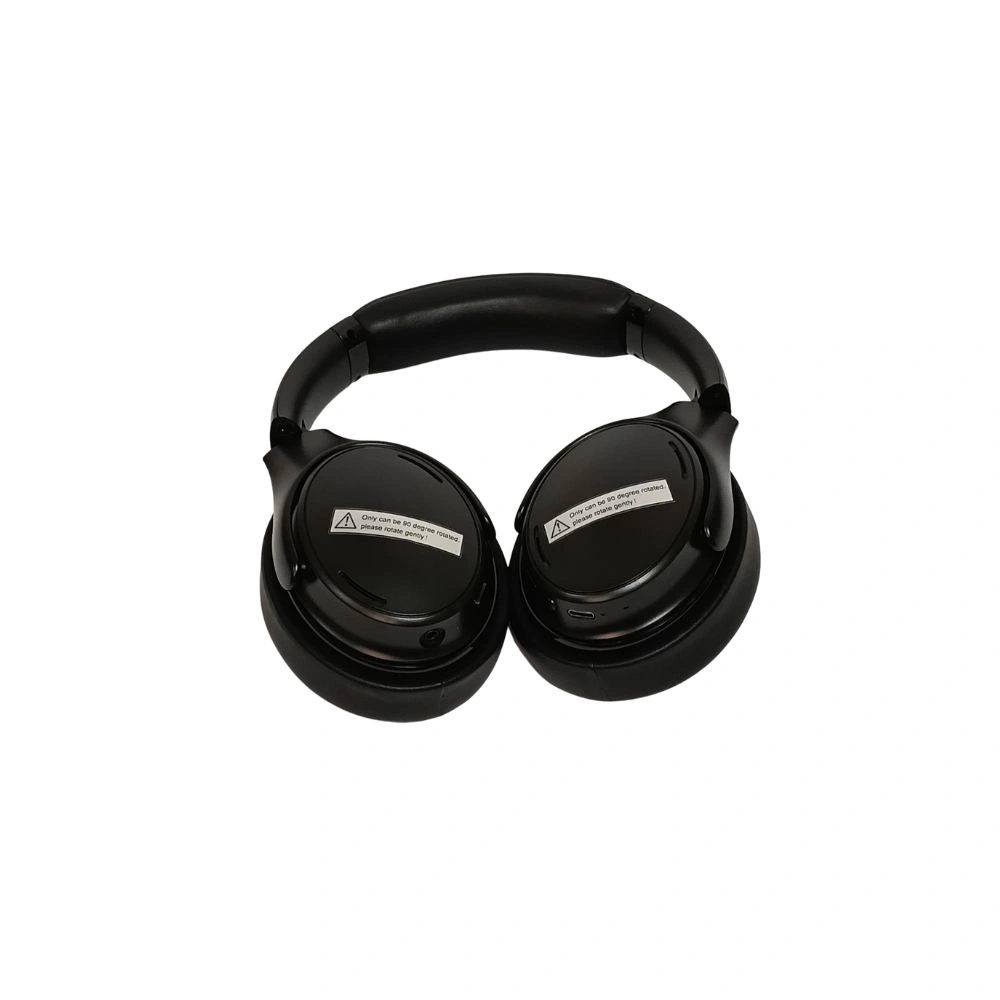

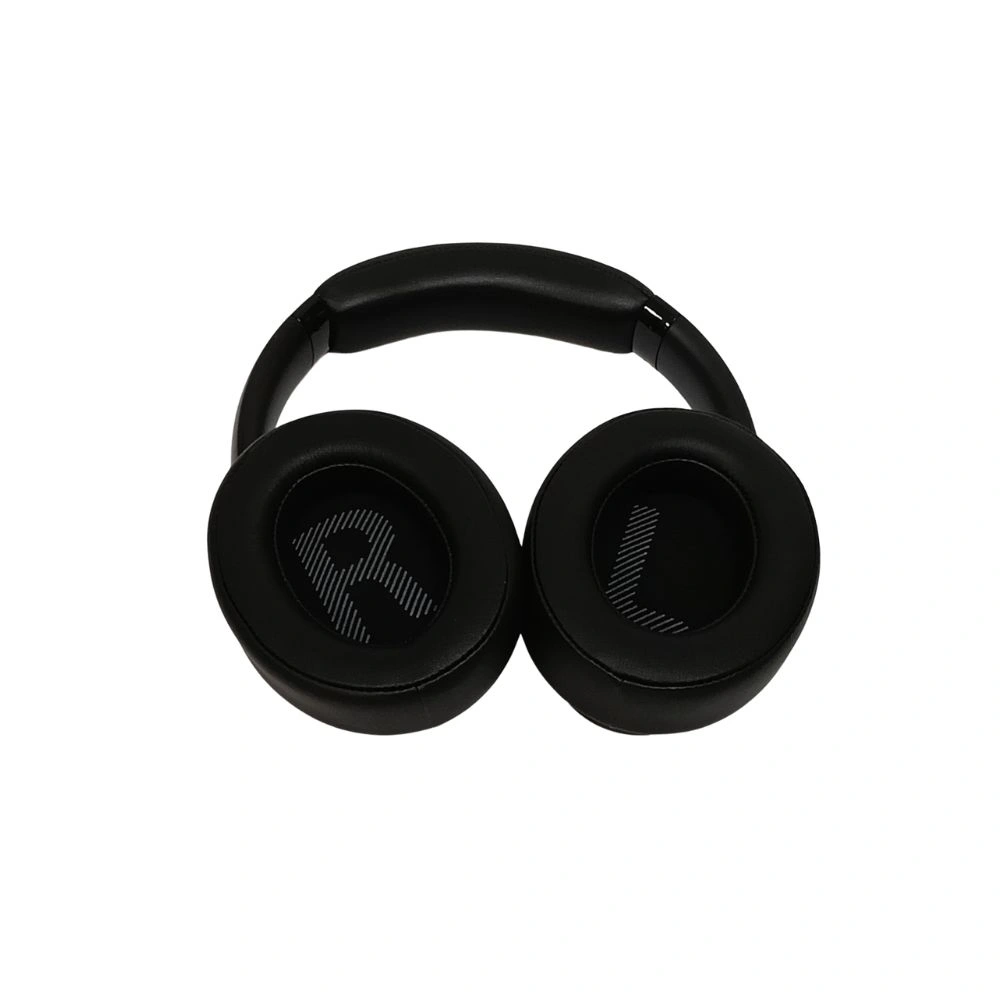

• Noise-cancelling ergonomic headphones: Clear audio monitoring even in loud industrial environments.
• Adjustable sensitivity: 32 levels of volume control allow precise tuning for different applications.
• Long battery life: Powered by 4 standard AAA batteries, offering up to 30 hours of continuous use.

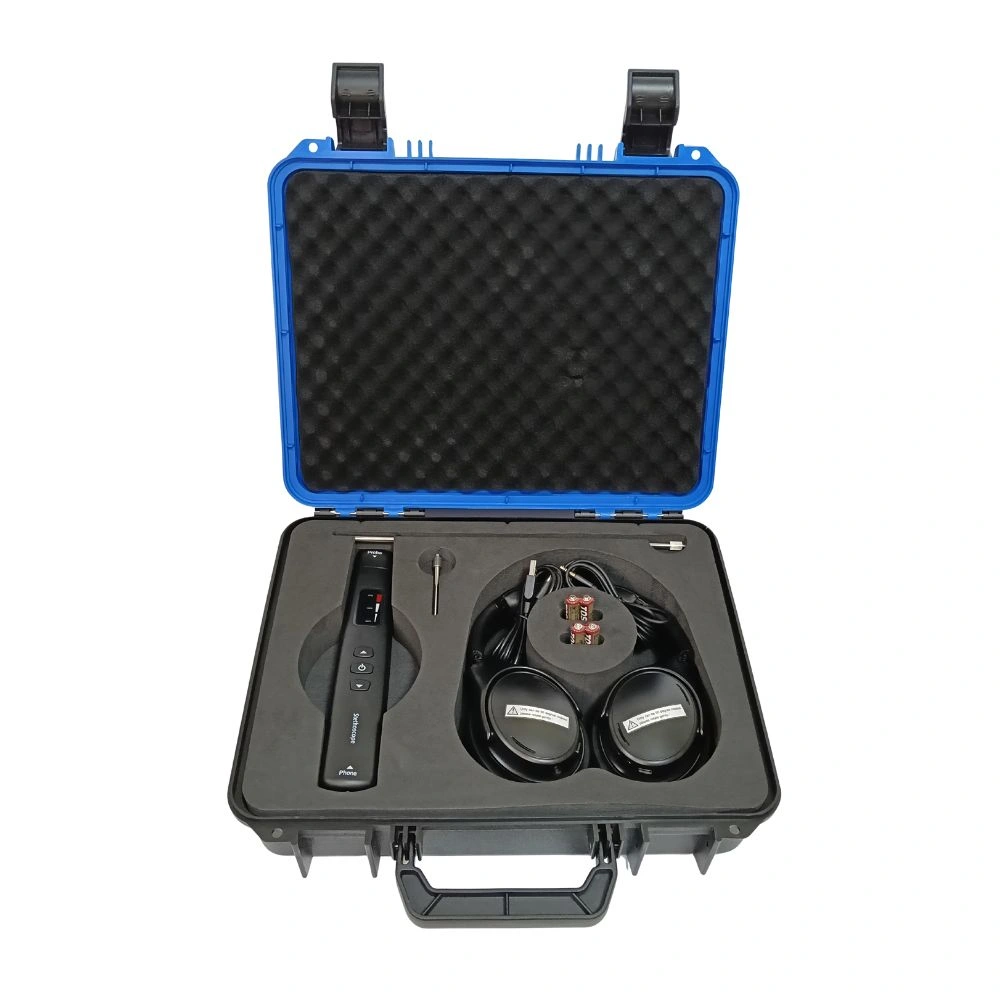

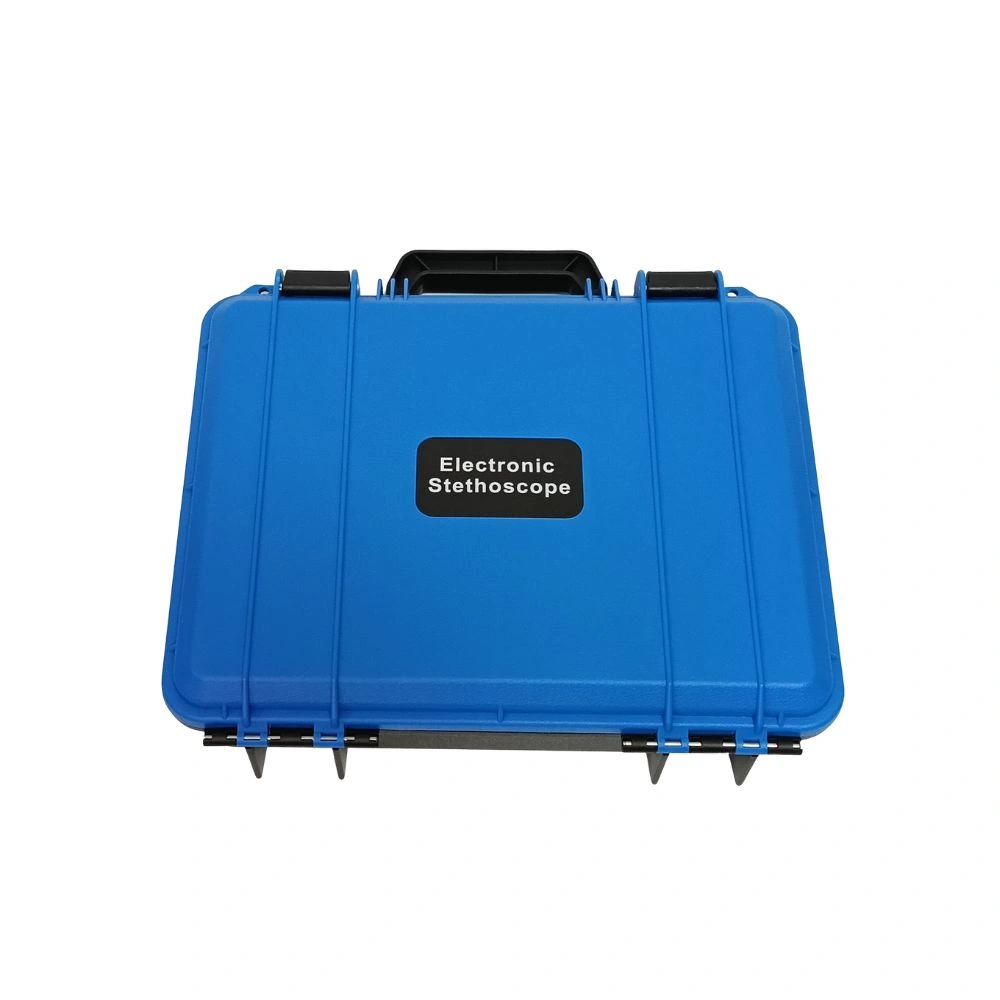

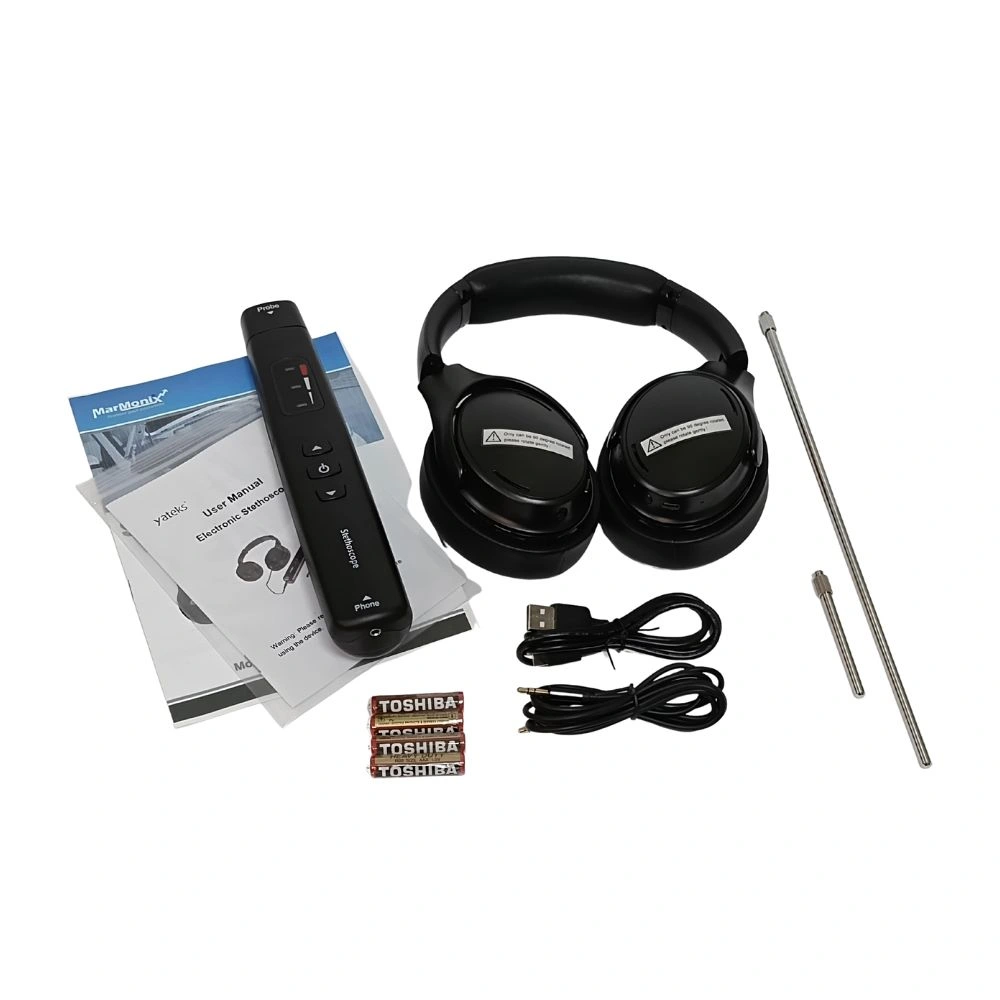

• Portable design: Lightweight body supplied with a protective carrying case for field use.
• Low battery indicator: Ensures uninterrupted operation during critical inspections.
• Durability: Designed with high-quality materials to withstand demanding environments.

Applications of MarMonix MES 111 Electronic Stethoscope

The MES 111 is engineered for multiple industries where early fault detection is critical:

• Automotive: Diagnose engine knocks, piston slap, valve problems, transmission wear, and bearing faults.
• Industrial Machinery: Monitor pumps, compressors, gearboxes, and conveyors to detect unusual vibration or grinding sounds.
• HVAC Systems: Identify blower motor, fan, or valve irregularities before system breakdown.
• Predictive Maintenance: Establish baseline noise levels and compare them over time to prevent unexpected downtime.

Ease of Use with MarMonix MES 111 Electronic Stethoscope

Designed with technicians in mind, the Marmonix MES 111 is extremely user-friendly:

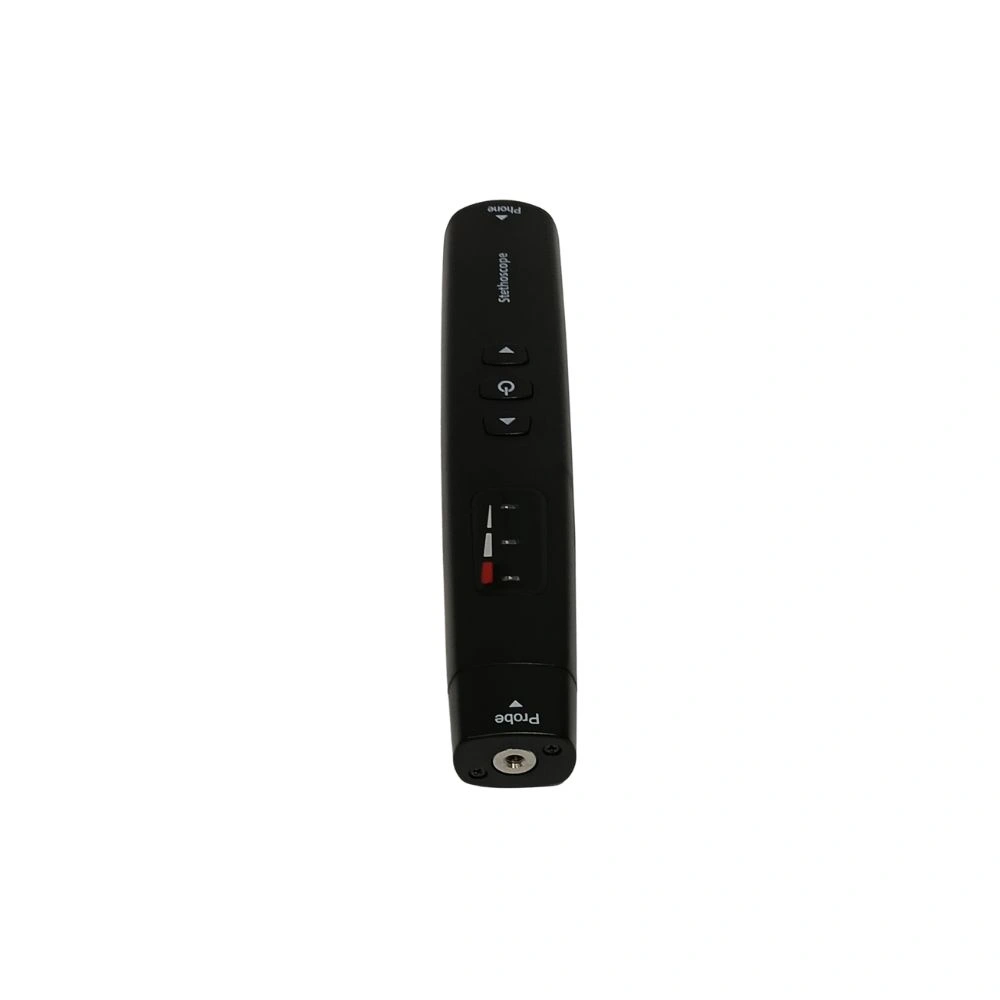

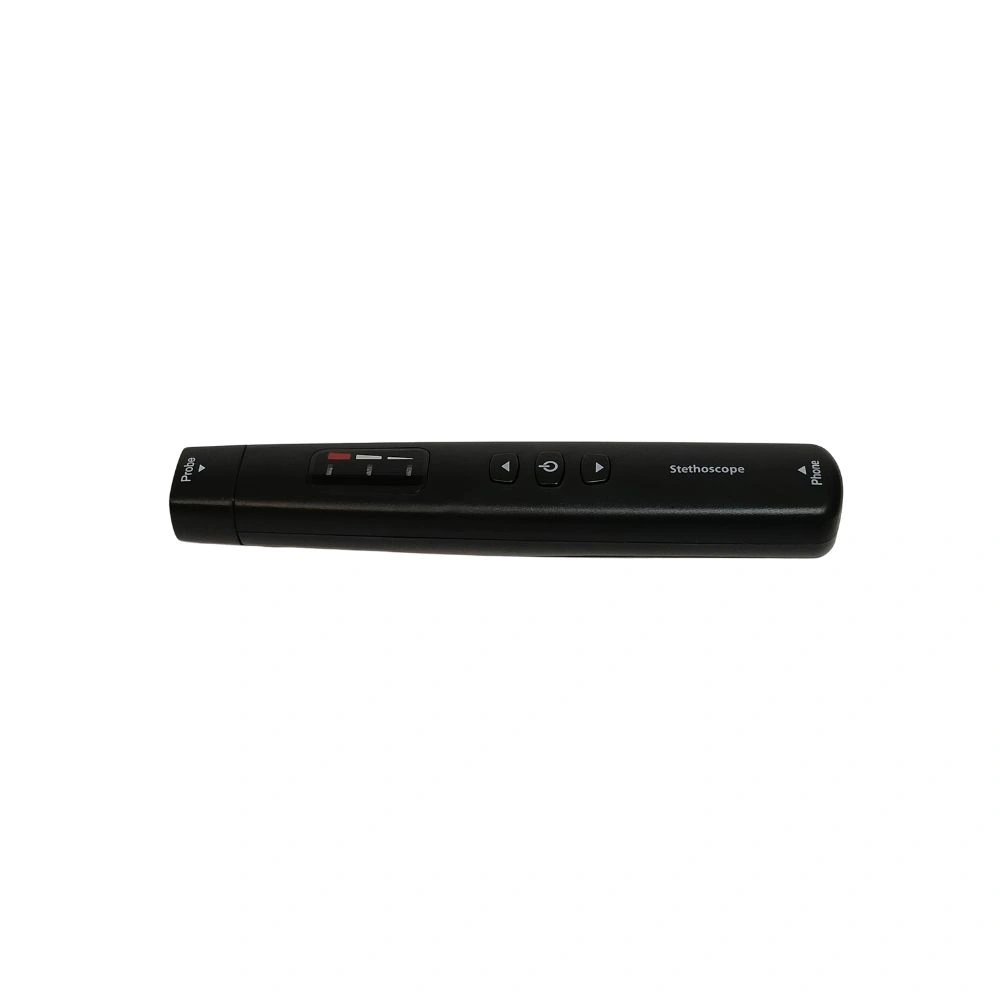

• Power on with a single button.
• Attach the short or long probe depending on the inspection area.
• Place the probe tip on the surface and adjust the volume to a comfortable level.
• Instantly hear abnormal mechanical noises and identify their source.

Its ergonomic build ensures comfortable operation during long shifts, while the noise-cancelling headphones guarantee accurate diagnostics even in the busiest workshop or factory floor.

MarMonix MES 111 Electronic Stethoscope Specifications

Questions about the MES 111 electronic stethoscope

Which probe should I use on the MES 111?

Use the short 70 mm probe on the MES 111 for quick checks on accessible surfaces, and the long 280 mm probe for recessed or hard-to-reach points on engines, pumps or HVAC plant. Both probes are detachable and ship with the meter.

What frequency range does the MES 111 cover?

The MES 111 covers 30 Hz to 15 kHz so you can hear low-frequency knocks and higher-frequency vibration on the same tool, with 32 volume stages to set listening level. Its published resonant frequency is above 35 kHz.

Where is the MES 111 typically used?

The MES 111 is used for automotive engine and transmission checks, industrial pumps, compressors and gearboxes, and HVAC fans or valves where early mechanical noise points to a fault. It weighs 440 g with batteries and runs about 30 hours on four AAA cells.

Case study: finding the source of a mechanical noise

In a typical diagnosis, a knock, squeal or rattle in an engine, pump or compressor is easy to hear but hard to locate, because sound travels through the whole machine.

An electronic stethoscope amplifies vibration picked up by a probe placed directly on the component and sends it to noise-canceling headphones. The short probe suits accessible parts, and the long probe reaches bearings or housings deeper in the machine. Adjustable volume lets the user compare quiet and loud areas.

Technicians move the probe from point to point, such as bearings, pulleys, valves or injectors, and listen for where the noise is strongest. That narrows the fault to one component before any dismantling starts.
