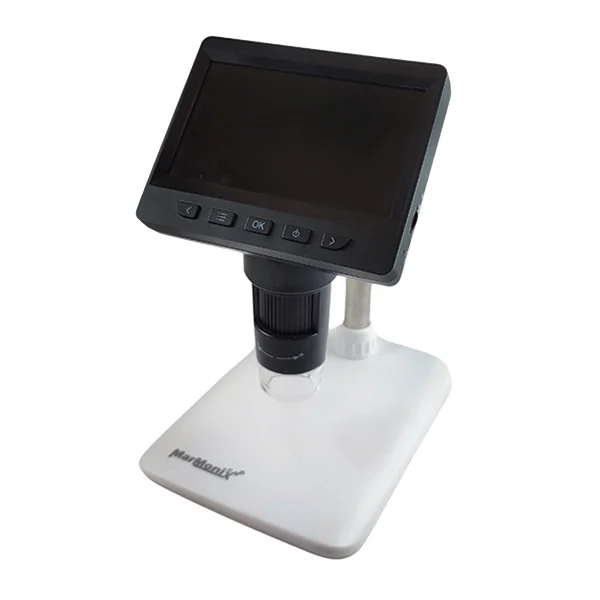

Marmonix LDM-21000 Portable Circuit Microscope

The Marmonix LDM-21000 digital microscope combines a 4.3-inch IPS display, a 2-megapixel camera at 1920×1080, and 50–1000x magnification with manual focus (0–40 mm) and eight adjustable LEDs for PCB, phone and electronics inspection. It records JPG stills and AVI video at 25 fps, runs about 3.5 hours on its 2000 mAh battery, and connects over USB 3.0. Browse all Marmonix accessories.

Marmonix LDM 21000 Microscope

The Marmonix LDM-21000 Digital Microscope delivers exceptional clarity with its 2-megapixel camera, providing high-resolution images of tiny details. Whether you’re inspecting delicate circuit boards or analyzing microscopic cracks, this device ensures every detail is captured with precision. Its ability to produce ultra-clear visuals makes it an indispensable tool for technicians and professionals working with electronics.

1000x Magnification for Accurate Inspections

Equipped with an impressive 1000x magnification, the LDM-21000 allows users to zoom in on the smallest components of electronic devices. This feature is particularly beneficial for mobile phone repair and other electronics maintenance tasks, where identifying minuscule defects is crucial. With this level of magnification, even the tiniest issues can be spotted and addressed efficiently.

Advanced Color Display for Realistic Visualization

The high-resolution color display of the LDM-21000 enhances the viewing experience by providing realistic and detailed visuals. The vivid color reproduction helps technicians identify faults with greater ease, ensuring faster and more accurate repairs. This advanced display is designed to provide a professional-grade viewing experience, perfect for detailed inspections and repairs.

Lightweight and Portable Design

One of the most convenient features of the Marmonix LDM-21000 is its lightweight and portable design. This compact digital microscope is easy to carry and can be used in various settings, from workshops to on-site inspections. Its portability ensures flexibility for professionals who need reliable tools for their day-to-day tasks.

Enhanced Features for Professional Use

The Marmonix LDM-21000 comes with upgraded features, including its enhanced zoom capabilities and improved 2MP camera quality. These improvements make it one of the most sought-after tools for technicians in the mobile repair and electronics industry. Its ability to deliver precise and detailed results sets it apart from other digital microscopes.

Marmonix LDM 21000 specification

The LDM-21000 includes:

• High-Quality Color Display
• 1000x Magnification
• 2-Megapixel Camera Resolution
• High Image Clarity
• Lightweight and Portable Design

Questions about the LDM-21000 digital microscope

What magnification does the LDM-21000 offer?

The LDM-21000 offers continuous 50–1000x magnification with manual focus over a 0–40 mm working range, so you can move from overview to fine solder-pad detail on one tool. Its datasheet lists a 2-megapixel sensor with 1920×1080 still and video output.

Does the LDM-21000 need a separate monitor?

The LDM-21000 has a built-in 4.3-inch IPS screen, so you can inspect without a separate monitor; USB 3.0 also connects to Windows or macOS when you want to view or save on a PC. Eight adjustable LEDs light the work area.

How long does the LDM-21000 run on battery?

The LDM-21000 datasheet rates about 3.5 hours of use on its 2000 mAh battery and about 3 hours to recharge. It saves JPG photos and AVI video at 25 frames per second for repair documentation.

Case study: inspecting circuit boards during electronics repair

Faults on circuit boards and phone mainboards, such as cracked solder joints, lifted pins or corrosion, are often too small to see with the naked eye.

A handheld digital microscope magnifies the board from 50 to 1000 times and shows the image on its built-in screen, lit by adjustable LEDs, so no separate monitor is needed. Manual focus allows clear views of components at different heights.

In a typical repair, the technician scans the board area by area, focuses on suspect joints or parts, and saves photos or video of the defect. The images help confirm the fault before and after rework and can be shared with the customer or team.
