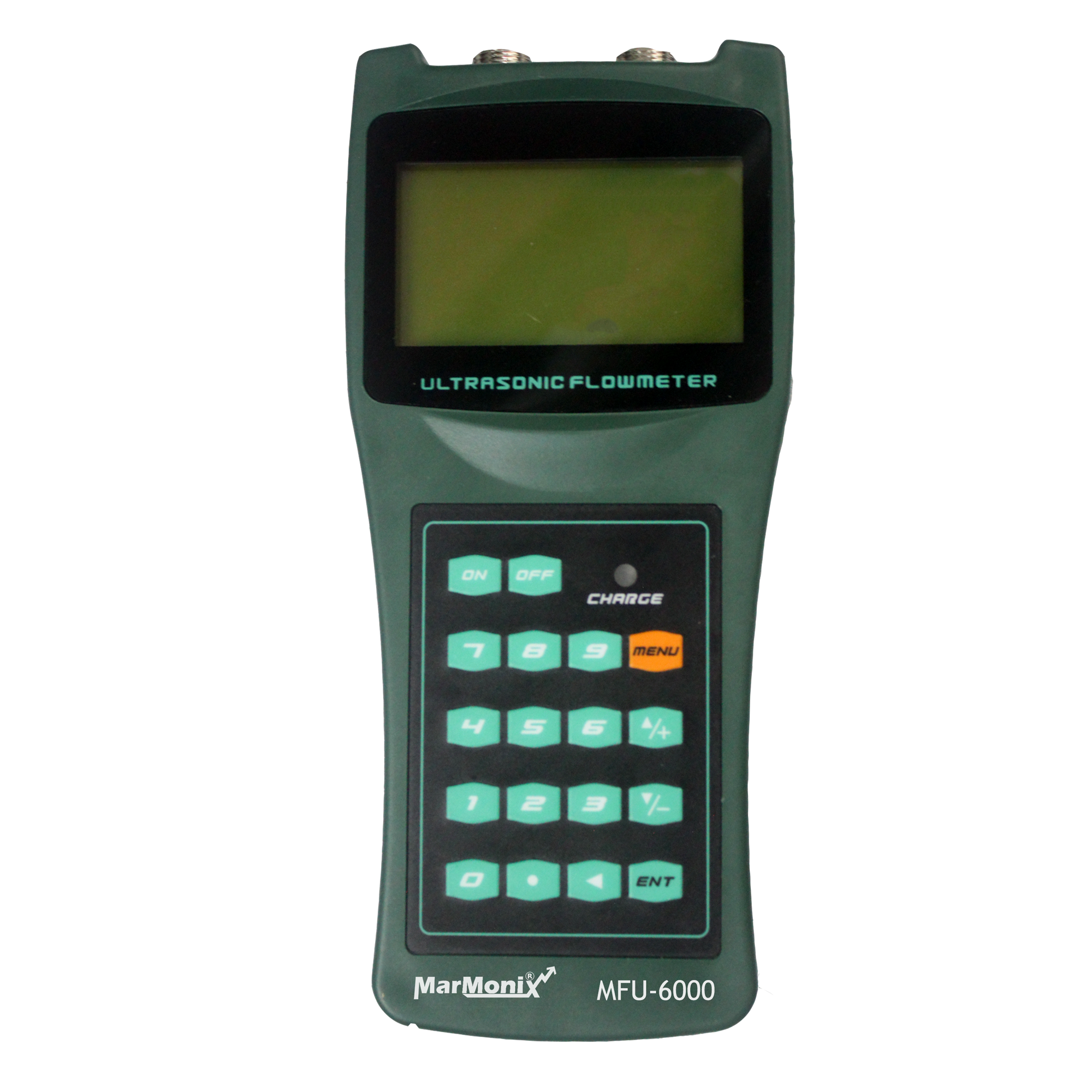

Marmonix MFU-6000 Handheld Clamp-On Flowmeter

SKU: MFU-6000 Category:

Clamp-on ultrasonic flow meter for liquids in DN15 to DN6000 pipes. It measures without cutting the pipe, with ±1% accuracy, 0.2% repeatability and velocities up to ±32 m/s. The 514 g handheld meter has a 2,000-line logger, RS-232C output, net/positive/negative totalizers and runs more than 10 h on its battery. Supplied with M2 transducers in a hard case.

WhatsApp
Email
Telegram
Description

The Marmonix MFU-6000 handheld ultrasonic flow meter measures liquid flow from outside the pipe. Clamp the transducers on, enter the pipe data and read flow rate, velocity and totals within minutes, with no cutting, no shutdown and no pressure loss. It covers pipes from DN15 to DN6000 and velocities to ±32 m/s, with ±1% of reading accuracy above 0.2 m/s and 0.2% repeatability.

The 514 g meter runs more than 10 hours on rechargeable batteries, logs more than 2,000 lines and exports data over RS-232C. It ships in a hard case with M2 transducers, mounting chains and coupling gel, ready for site surveys. See all models in our flow meters range, or the MFU-6400 portable flow meter if you need printed records.

Why choose the MFU-6000

  • Non-invasive clamp-on measurement: no hot-tapping or process interruption, and no wear parts in the flow.
  • One meter for DN15 to DN6000: swap between S2, M2 and L2 transducers to cover small service lines up to large mains.
  • Accurate, stable readings: ±1% of reading, 0.2% repeatability, 0.5% linearity and 100 ps time resolution.
  • Works near VFDs: a patented balanced low-voltage multi-pulse circuit improves immunity to interference from inverters and pumps.
  • Complete totals: net, positive and negative 7-digit totalizers plus a manual totalizer for batch checks; flow direction indication.
  • Field friendly: 200 × 92 × 32 mm, IP65 transmitter, buzzer/OCT alarm output, zero adjustment, self-diagnosis and setup lock with access code.

Applications

  • District cooling and HVAC: chilled-water and condenser-water flow balancing and plant commissioning
  • Water and wastewater networks: verifying bulk meters, pump station output and leak investigations
  • Oil, gas and petrochemical: crude, kerosene, gasoline and process-liquid surveys (within the transducer temperature range)
  • Desalination and sea-water lines: intake and brine flow checks
  • Power and industrial plants: cooling water, boiler feed and chemical dosing lines
  • Meter verification: on-line comparison against installed electromagnetic or fixed ultrasonic flow meters

MFU-6000 specifications

Parameter Value
Measuring principle Transit-time ultrasonic, clamp-on (non-invasive)
Velocity range ±32 m/s
Accuracy ±1% of reading at velocity above 0.2 m/s
Repeatability 0.2%
Linearity 0.5%
Response time 0–999 s, user selectable
Pipe size DN15 – DN6000
Totalizers 7-digit net, positive and negative totals; manual totalizer
Liquids Water, sea water, oil, acids, alcohol, gasoline, crude oil, kerosene, propane (at −54 °C), butane (at −0.5 °C) and other homogeneous liquids; suspended solids below 10,000 ppm
Display 4 × 16 character LCD
Communication RS-232C (FUJI extended protocol)
Data logger More than 2,000 lines
Security Setup lockout with access code
Housing Flame-retardant ABS
Transmitter environment −20 to +60 °C, up to 85% RH, IP65
Transducer temperature −30 to +160 °C (by model), IP65
Power 3 × AAA Ni-H rechargeable batteries, more than 10 h; charger 100–240 VAC
Weight 514 g
Dimensions 200 × 92 × 32 mm

Selectable units include cubic metres, litres, cubic feet, US and imperial gallons, oil and liquid barrels and million US gallons. Suitable pipe materials include steel, carbon and stainless steel, cast and ductile iron, copper, aluminium, PVC and fiberglass. Values are from the official MFU-6000 datasheet (Downloads tab).

Transducer selection

Model Type Pipe range Liquid temperature Size
S2 Small DN15 – DN100 −30 to +90 °C 45 × 25 × 32 mm
M2 (standard) Medium DN50 – DN700 −30 to +90 °C 64 × 39 × 44 mm
L2 Large DN300 – DN6000 −30 to +90 °C 97 × 54 × 53 mm
S2H / M2H / L2H High temperature Same as S2 / M2 / L2 −30 to +160 °C —
S2B / M2B / L2B Bracket mounted DN15–100 / DN100–300 / DN300–700 — —
S2BH / M2BH / L2BH Bracket, high temperature As bracket models Up to 160 °C —

The M2 clamp-on pair is supplied as standard; other transducers are optional. Tell us the pipe diameter, material and liquid temperature and we will recommend the right set.

How to install and measure

  1. Choose a straight pipe section, ideally at least 10 diameters of straight pipe upstream and 5 downstream of elbows, valves or pumps, where the pipe is always full.
  2. Enter the pipe outer diameter, wall thickness, pipe material, lining, liquid type and transducer type. The meter calculates the sensor spacing.
  3. Clean the pipe surface of paint, rust and dirt where the transducers will sit.
  4. Apply coupling gel, mount the transducers at the calculated spacing and fix them with the supplied chains.
  5. Check the signal strength and quality on the display, then adjust the position slightly if needed.
  6. Read the flow rate, velocity and totals; start the logger to record and export the data over RS-232C.

MFU-6000 vs MFU-6400

MFU-6000 MFU-6400
Format Handheld, 514 g Portable
Pipe range DN15 – DN6000 DN15 – DN6000
Accuracy ±1% of reading Better than ±1%
Repeatability 0.2% Better than 0.2%
Printer No (RS-232C + 2,000-line logger) Built-in mini thermal printer
Best for Fast spot checks and surveys by one technician Calibration checks with printed records

For permanent installations, see the MFU-6100 modular ultrasonic flow meter and the MFU-6300 wall-mounted flow meter.

What’s in the box

MFU-6000 main unit, M2 transducer pair, two 5 m mounting chains, two 5 m signal cables, RS-232 cable, charger, measuring ruler, coupling gel, user manual and a hard carrying case.

Supply in the UAE and GCC

Marmonix supplies the MFU-6000 and its optional transducers across the UAE (Dubai, Abu Dhabi, Sharjah and the Northern Emirates), Saudi Arabia, Oman, Qatar, Kuwait and Bahrain, with technical support for setup and pipe data.

MFU-6000 FAQ

Does the MFU-6000 need the pipe to be cut or the flow stopped?

No. The transducers clamp onto the outside of the pipe, so there is no cutting, no shutdown and no pressure drop. The meter measures through the pipe wall using transit-time ultrasound.

Which pipe sizes and materials can it measure?

DN15 to DN6000 with the right transducer: S2 for DN15–100, the standard M2 for DN50–700 and L2 for DN300–6000. It works on common metal and plastic pipes such as steel, carbon steel, stainless steel, cast iron, ductile iron, copper, aluminium, PVC and fiberglass; enter the material, wall thickness and lining in the setup menu.

How accurate is the MFU-6000?

Accuracy is ±1% of reading when the flow velocity is above 0.2 m/s, with 0.2% repeatability and 0.5% linearity. Mount the sensors on a straight run, typically at least 10 pipe diameters upstream and 5 downstream of bends, valves or pumps, for best results.

Can it measure hot water or chilled water?

Yes. The standard M2 transducers are rated −30 to +90 °C, and the high-temperature S2H, M2H and L2H versions go to +160 °C, covering chilled-water, condenser and hot-water lines.

Can it measure dirty water or slurry?

Transit-time measurement needs a fairly clean, homogeneous liquid; the MFU-6000 accepts suspended solids up to 10,000 ppm. For heavily aerated liquids or slurry, a Doppler flow meter such as the wall-mounted MFU-6500 is a better choice.

How do I save and export readings?

The built-in logger stores more than 2,000 lines of flow and totalizer data. Export them to a PC through the RS-232C port with the supplied cable. The batteries last more than 10 hours per charge for a full day of surveys.

Additional information
Brand

Marmonix

IP rating

IP65

Connectivity & outputs

RS232

Power source

Rechargeable Ni-MH

Features

Data logging

,

Totalizer

Applications

HVAC

,

Oil & gas

,

Water & wastewater

Measuring principle

Transit-time ultrasonic

Measured medium

Liquid

Mounting / format

Clamp-on (non-invasive)

,

Handheld

Pipe size range

DN15-DN6000

Accuracy

±1%
