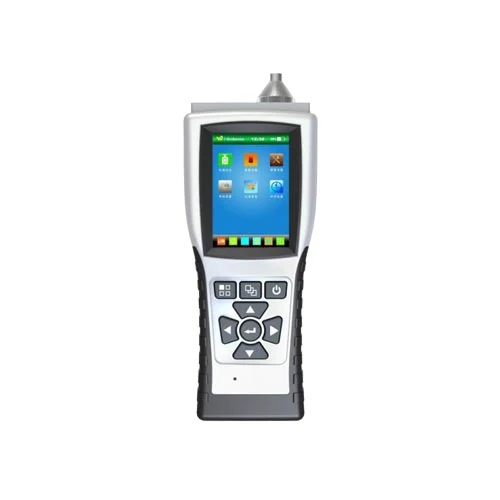

Marmonix MSF6-2000 (MSF6 2000) Portable SF6 Gas Leak Detector, NDIR Infrared

The Marmonix MSF6-2000 SF6 gas detector (also written MSF6 2000) is a handheld leak finder for sulphur hexafluoride: a built-in pump draws air across a non-dispersive infrared (NDIR) sensor and shows the SF6 level from 0 to 1000 ppm or 0 to 3000 ppm in 1 ppm steps, responding in under 20 seconds. High, low, TWA and STEL alarm points are user-set and signal with a buzzer, an LED and the status bar of the 3.5-inch colour screen, which can show the reading as a number or as a curve. About a month of readings, the last four alarms and the last four calibrations are stored and can be read on a PC over USB. The IP65 polycarbonate body weighs 0.55 kg, works from −40 to 70 °C and runs more than 30 hours per charge. See the Marmonix gas detectors range, or the gas detector buying guide.

Portable Infrared Gas Detector MSF6-2000

MSF6-2000 Portable Gas Detector Is a continuous monitoring of a variety of single gas detection equipment. This product is suitable for environmental monitoring, industrial production and other harmful gases working environment, which can effectively protect the health and safety of staff is not compromised

Portable Infrared Gas Detector MSF6-2000 Features

Functions printed on the MSF6-2000 datasheet:

• Intelligent Probe design; convenient calibration and maintenance;
• Fault, Warning, operator error, alarm will be smart tips;
• Built-in CF calibration coefficients (VOC measurements only valid);
• With audible alarm, visual alarm function, the status bar also displays alarm status;
• Full-color 3.5-inch TFT screen, color LCD display and intuitive;
•  Can be both digital and curve display of gas concentration in two ways;
• With USB communication port, you can speed 9600 bytes to communicate directly with the computer;
• With test record function, can store a month’s measurement data and instrument or computer can view the data;
• With alarm recording function, you can record the last four times the alarm time and type;
• With calibration record; can record the last four times the size of the calibration time span;
• High-capacity lithium battery-powered, rechargeable, low battery automatic shutdown;
• Can be set high reported, underreporting, TWA, STEL, shutdown time, pump speed, etc.;

Portable Infrared Gas Detector MSF6-2000 Specifications:

Technical Parameter

Buying guide: Read our gas detector buyer’s guide.

Case study: a pre-entry check and leak hunt in a switchgear basement

A substation crew is told that the gas-density relay on one SF6 breaker has dropped. Before anyone goes down into the cable basement under the panels, they need to know whether escaped gas has collected there, and then where it is coming from.

The MSF6-2000 is used in two stages:

• Check the air first: SF6 is heavier than air, so the pump inlet is held low at the stair and trench entrances; the TWA and STEL alarm points set on the detector warn before anyone stays long.
• Then trace the source: at the breaker, the inlet is moved slowly along flanges, filling valves and the density relay while the screen is switched to the curve view, so a rising slope points to the leaking joint.
• Keep the record: the readings and alarm events stay in the memory and are copied to a PC over USB for the outage request.

The repair team receives a location and a ppm history instead of a vague report of low gas pressure.

MSF6-2000 (MSF6 2000): buyer questions

Is the MSF6-2000 an SF6 leak detector?

Yes. Its datasheet names it a portable SF6 infrared gas analyzer: an NDIR sensor with pump sampling that reads SF6 from 0 to 1000 ppm or 0 to 3000 ppm, or a customised range.

How precise is the MSF6-2000?

The specification table gives 1 ppm resolution, a precision of 5% of full scale and a response time under 20 seconds.

Where can the MSF6-2000 be used?

It works from −40 to 70 °C, 15–95% relative humidity without condensation and at atmospheric pressure ±10%, and the polycarbonate housing is rated IP65.
