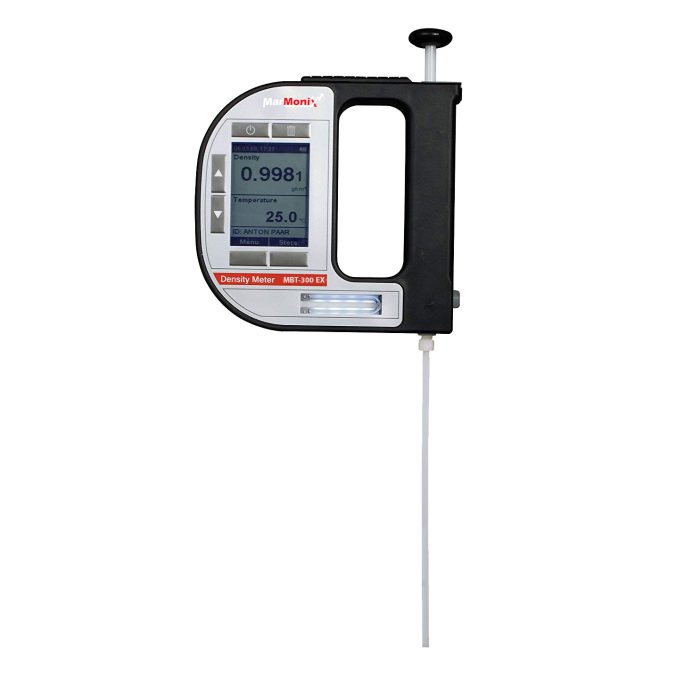

Concentration Meter With Protection MBT-300 ex
The portable digital densitometer With EX Protection Certificate represents the highest level of field density measurement technology. The delicate design meets the application needs of most users, providing a variety of optional data (such as density, specific gravity, or sample concentration percentage, etc.). Users can obtain clear and bright real time data by pressing the sample of the built in pump gently. It is based on the well known resonant tube technology and is very elaborate in design. Users can easily measure many samples; if they need to store data, just press the storage key lightly; with built in large memory, they can store 100 data and export it to a computer or printer.
Concentration Meter With Protection MBT-300 ex Specifications:
Patents granted | Smart connection of measuring cell: Patent AT516421 (B1), EP3015847 (B1) |
Other special functions | Viscosity correction for reliable measurements, also on highly viscous samples Gesture control for easy one-handed measurements Identification of results outside your specified limits |
Measuring range | Density: 0 g/cm³ to 3 g/cm³ Temperature: 0 °C to 40 °C (32 °F to 104 °F)* |
Accuracy | Density: 0.001 g/cm³ ** Temperature: 0.2 °C (0.4 °F) |
Repeatability, s.d.*** | Density: 0.0005 g/cm³ Temperature: 0.1 °C (0.2 °F) |
Reproducibility, s.d.*** | Density: 0.0007 g/cm³ |
Resolution | Density: 0.0001 g/cm³ Temperature: 0.1 °C (0.1 °F) |
Ambient temperature**** | Standard Version: -10 °C to +50 °C (14 °F to 122 °F) Ex and Ex Petrol version: -10 °C to +40 °C (14 °F to 104 °F) |
Supported measuring units |
|
Sample volume | 2 mL |
Dimensions (L x W x H) | 245 mm x 103 mm x 126 mm |
Data memory | 1024 measured results, 30 measuring methods, 250 sample IDs |
Power supply | Three 1.5 V LR06 AA alkaline batteries |
Weight | 660 g |
Interfaces | Bluetooth®, RFID (both included by default) |
Protection class | IP54 (first digit: 5 – protection against dust ingress; second digit: 4 – protection against splash water from any direction) |
Intrinsic safety of Ex and Ex Petrol version | Ex  II 2 G Ex iB IIC T4 |
Scope of supply | Portable density meter, filling tube, adapter for syringe filling, syringes, transportation suitcase, rubber protection for measuring cell, three batteries, Allen key, instructions |
Menu language | English, German, Chinese, Japanese, French, Russian, Italian, Portuguese, Turkish |
Available options |
Elongated filling tube |
* Measurements up to 100 °C possible ** Viscosity <300 mPa•s, density <2 g/cm³ *** according to ISO 5725 **** Sample must not freeze within the measuring cell; Ex and Ex Petrol version: -10 °C to +40 °C (14 °F to 104 °F) |
