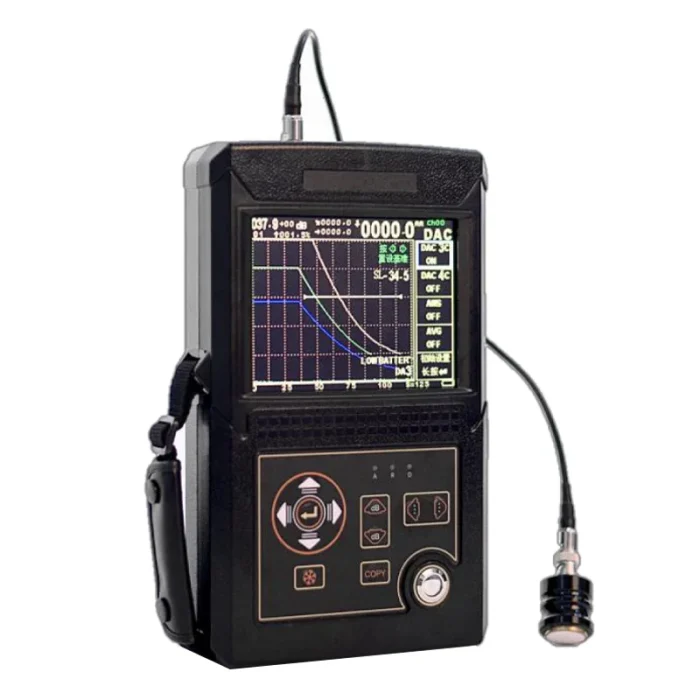

Marmonix MFD-6000 Ultrasonic Flaw Detector

Marmonix Ultrasonic Flaw Detector MFD-6000

The MFD-6000 Ultrasonic Flaw Detector is one of the most advanced and versatile tools for identifying and evaluating defects in various materials. Equipped with modern capabilities such as automatic probe calibration and automatic generation of DAC and AVG curves, this device ensures high precision in detecting cracks, cavities, and other flaws in metallic and non-metallic materials. Its durable design makes it ideal for challenging industrial environments, including the oil and gas, manufacturing, and aerospace industries.

Features like adjustable pulse width and intensity, automatic calculation of equivalent defect values, and the ability to store up to 980 A-scan images and related data establish the MFD-6000 as a reliable choice for engineers and professionals. Additionally, the device offers PC software for data analysis, management, and report printing, enhancing its usability in professional applications. With its rugged, oil-proof, waterproof, and dust-proof construction, along with a rechargeable battery that provides over 15 hours of standby time, the MFD-6000 delivers both efficiency and durability for extended use in demanding conditions.

Marmonix MFD-6000 Ultrasonic Flaw Detector specification

Technical Specifications

• Operating Frequency: 0.5MHz~15MHz
• Scanning Range: 0-6000mm
• Vertical Linearity Error: ≤4%
• Horizontal Linearity Error: ≤0.1%
• Dynamic Range: ≥32dB
• Noise Level: <8%
• Velocity Range: 1000~9999 m/s
• Testing Sensitivity: ≥60dB (Depth 200mm, Ø2 flat bottom hole)
• Gain Range: 0~110dB

Probes

• Standard Probes:
• Straight Probe: 2.5MHz, Diameter 20mm
• Angle Probe: 4MHz, 60°, 8×9 mm

Working Environment

• Standby Time: ≥ 10 hours of continuous work
• Temperature: -20 to 70°C
• Humidity: 20%-95% RH

Dimensions and Weight

• Overall Dimensions: 240×160×40 mm
• Weight: 1.2 kg

Standard Accessories

• Main Unit
• Straight Probe
• Angle Probe
• Power Adapter
• BNC Cable (Q9-Q9)
• PC Software
• Manual
• Certificate
• Warranty Card

Optional Accessories

• Optional Probes
• Cables
• Calibration Blocks
• Coupling Agent
