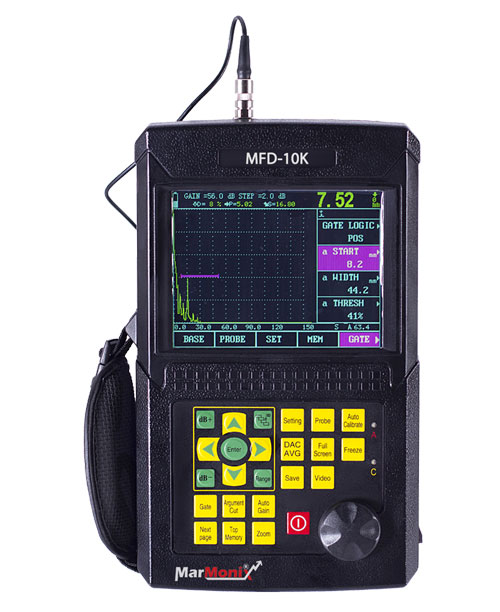

MarMonix MFD-10K Ultrasonic Flaw detector
The MFD-10K is a high-precision non-destructive flaw detector designed for detailed inspections in aerospace and railway industries. It ensures structural safety evaluations in power plants and petrochemical sectors, making it an essential tool for professionals in advanced quality control applications.
With its cutting-edge ultrasonic analysis and enhanced detection accuracy, the MFD-10K provides deep defect analysis and reliable performance in complex industrial environments.
Ultrasonic Flaw detector MFD 10K
The MFD-10K is an advanced non-destructive flaw detector designed for high-precision inspections and detection of complex internal defects. Equipped with enhanced signal processing algorithms and ultrasonic wave analysis, this device offers higher accuracy and deeper defect detection, making it ideal for aerospace, power plants, railway transportation, and petrochemical industries.
Similar to the MFD-6K, this model operates based on ultrasonic wave propagation, detecting cracks, pinholes, and inclusions by analyzing changes in wave behavior. However, it features higher precision and more advanced analytical capabilities for better data interpretation.
Key Features:
- All features of the MFD-6K with upgraded capabilities
- Echo frequency analysis for enhanced defect detection accuracy
- Storage capacity for over 980 A-Scan images with advanced data analysis options
- Compensation algorithm for dB attenuation in thick, rough, or curved surfaces
- 13 built-in testing standards with customizable settings
- PC software for advanced data management, defect analysis, and reporting
- Audible and visual DAC and strobe alarms for enhanced safety
- Adjustable pulse width and intensity for professional testing applications
- Durable, oil-proof, water-proof, and dust-proof design for harsh environments
Ultrasonic Flaw detector MFD-10K Specifications:
| Parameter | Value | |
| Model | MFD-6K | MFD-10K |
| Operating Frequency | 0.5MHz～15MHz |      0.5MHz～20MHz |
| Scan Range (mm) | 0-6000mm | 0-10000mm |
| Velocity Range (m/s) | 1000～15000 | 100～20000 |
| Vertical linearity error | ≤3% | ≤2% |
| Dynamic Range | ≥32dB | ≥35dB |
| Horizontal linearity error | ≤0.2% | ≤0.1% |
| Testing sensitivity | ≥62dB (Depth 200mm, Φ2 flat bottom hole) | ≥65dB (Depth 200mm, Φ2 flat bottom hole) |
| Measuring channel | 50 | 100 |
| Storage | 500 | 980 |
| TCG curve | No | Yes |
| B Scan | No | Yes |
| PC Connection | Yes | Yes |
| Video | No | Yes |
| Gain Range (dB) | 0~110 | 0~130 |
| Standard Probes | Straight probe: 2.5MHz, diameter 20mm, cable Q9-Q9
Angle probe: 4MHz, 60 degree, 8*9 mm, cable Q9-C5 |
|
| Dimensions | 240×160×40mm | |
| Weight | 1.2kg | |
| Power supply | Li battery  7.4V 4800mAh | |
| Operation environment | Temperature: -20℃～50℃, Humidity:20%～90%RH,                          Out of strong magnetic field and corrosion | |
| Optional accessories | Cables, Calibration blocks, Coupling agent | |
