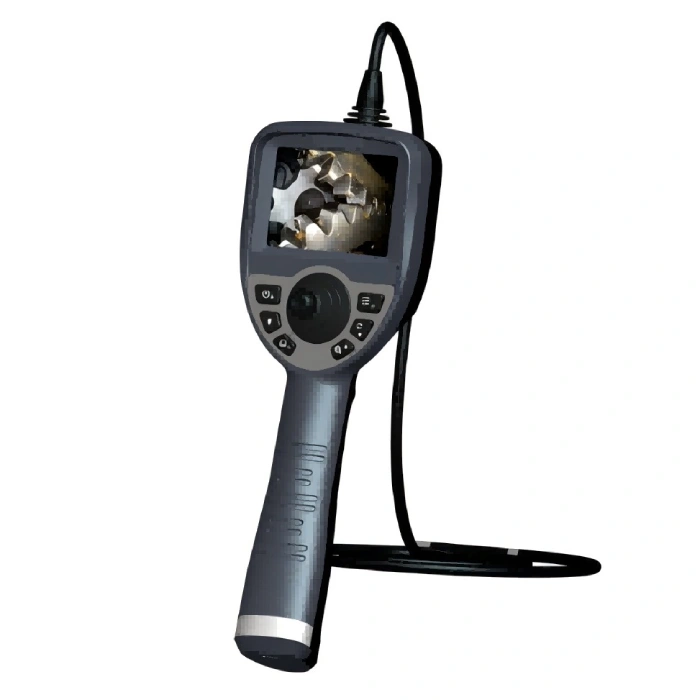

MarMonix MVS 600 Series Ultra-Slim Industrial Videoscope

Achieve uncompromising clarity and versatility with the MarMonix MVS 600 Series, the industry-leading modular videoscope designed for critical non-destructive testing (NDT) and remote visual inspection (RVI). Engineered to bridge the gap between portability and performance, the MVS 600 empowers technicians to diagnose issues in the most inaccessible machinery, pipelines, and cavities with absolute confidence.

MarMonix MVS 600 Product Overview

The MarMonix MVS 600 Series redefines field inspection by combining a durable, handheld host unit with a fully interchangeable probe system. Unlike fixed-probe cameras, the MVS 600 allows operators to instantly swap between insertion tubes ranging from ultra-thin 1.0mm diameters for delicate aerospace components to robust 8.0mm probes for large-scale pipe examinations.

At its core is a vibrant 3.5″ TFT LCD display ($640\times480$ pixels) that renders inspections in sharp detail. The system is built for speed and efficiency, offering immediate startup, intuitive button controls for 4x digital zoom and image rotation, and seamless recording of JPEG stills and AVI/MP4 video directly to a removable SD card (supports up to 128 GB).

Designed for the harshest industrial realities, the probes feature 4-layer rugged sheathing and carry an IP67 waterproof rating, ensuring they withstand abrasion, water, and oil during operation. Whether performing routine maintenance on HVAC systems or critical quality assurance on gas turbines, the MVS 600 delivers the durability and imaging power professionals require.

MVS 600 Specification & Application Guide

MarMonix MVS-600 Key Features

• Universal Modular Interface: One host unit drives the entire fleet of MVS probes. Switch effortlessly between diameters (1.0mm, 1.2mm, 2.0mm, 2.8mm, 4.0mm, 5.8mm, 8.0mm) and lengths (0.5m to 10m) to suit the specific geometry of your inspection target.

• Precision Imaging & Optics: equipped with high-sensitivity sensors (up to 1.0 MP on larger probes) and optimized depth-of-field options (3mm to infinity). The system captures hairline cracks, corrosion, and blockages with exceptional fidelity.

• High-Intensity Illumination: Navigate pitch-black environments with integrated fiber optic LED lighting. Featuring 10 adjustable brightness levels and outputting up to 100,000 lux (on 8mm models), it guarantees shadow-free visibility in deep voids.

• Extreme Durability & Protection: The insertion tubes are reinforced with a quad-layer construction to resist crushing and abrasion. The camera heads are rated IP67, making them fully submersible for drain and fluid line inspections.

• Full-Shift Battery Life: A high-capacity rechargeable Li-ion battery provides up to 6 hours of continuous runtime, minimizing downtime during extended field operations.

• Advanced Articulation (Optional): Select models feature all-way mechanical articulation ($360^{\circ}$), controlled via an integrated joystick or wheel, allowing the camera tip to look back and navigate complex bends inside engines and turbines.

• Data Management: Simplify reporting with time-stamped files and easy data transfer via USB or SD card.

MarMonix MVS600 Technical Specifications

MarMonix MVS 600 Ideal Applications

• Aerospace: Inspection of turbine blades, combustion chambers, and airframe voids.

• Power Generation: Maintenance of heat exchangers, steam turbines, and switchgear.

• Automotive: Diagnostics of cylinders, fuel injectors, and casting quality.

• Process Industry: Monitoring of orbital welds, valves, and high-purity piping.

• Security & Search: Visual verification in tight, enclosed spaces.
