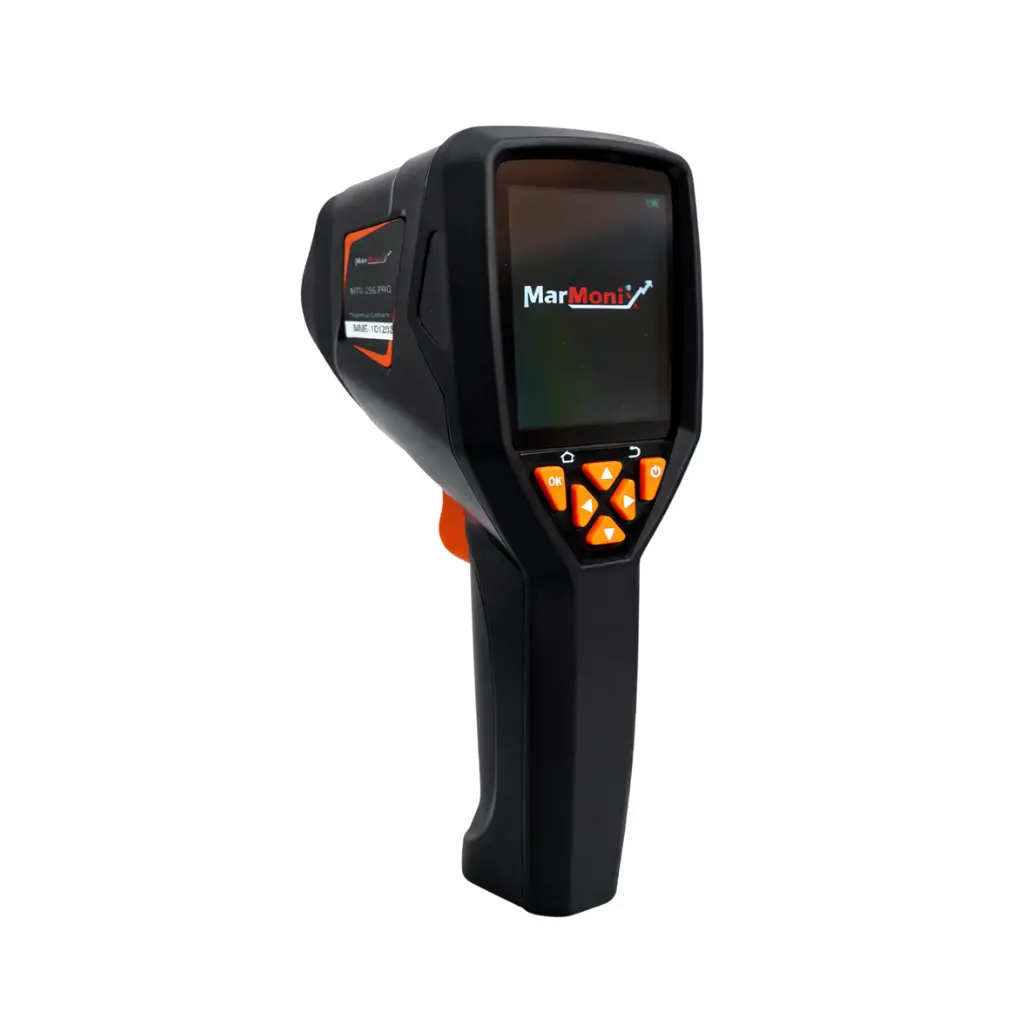

Marmonix MTV 256 PRO Handheld Thermal Camera | -20°C to 400°C
-
Imaging: 192×256 Infrared Resolution & 720P Visual Light
-
Range: -20°C to 400°C (±2°C Accuracy)
-
Storage: 8GB internal memory (>20,000 JPG/MP4 files)
-
Battery: 2600mAh Li-ion (approx. 4 hours continuous use)
he Marmonix MTV 256 PRO represents a significant advancement in 3D handheld thermal imaging technology. It is designed as an essential, professional-grade diagnostic tool that allows users to swiftly identify hotspots, temperature anomalies, and underlying problems before they result in system failures.
Professional Applications for the MTV 256 PRO
The MTV 256 PRO is an invaluable asset for preventative maintenance and repair tasks across multiple industries. Because it captures high-fidelity thermal data in real-time, this camera excels in quickly locating and diagnosing issues within:
-
Electrical Systems: Spotting overheating circuits, loose connections, and overloaded breakers.
-
Mechanical Components: Diagnosing excessive friction, bearing wear, and motor issues.
-
Building Structures: Identifying missing insulation, thermal leaks, and moisture intrusion.
-
Floor Heating Systems: Tracing radiant heating pipes beneath flooring without destructive testing.
Advanced Dual-Lens Specifications of the MTV256 PRO
Engineered for precision, the MTV256 PRO features a high-sensitivity 192×256 infrared sensor with a spectral range of 8~14um and a 3.2mm lens. This is paired with a 720P visual light camera (55°x83° FOV) to give professionals complete visual context. The device accurately measures a wide temperature range from -20°C up to 400°C with an accuracy of ±2°C or ±2%.
With a fast 25Hz frequency and a thermal sensitivity (NETD) of 70mK@25°C, it delivers incredibly smooth thermal video. Users have total control over their diagnostics with dynamic measurement options that track the highest, lowest, central, and zone temperatures. You can also customize your display using 8 distinct color palettes: Iron red, white hot, black hot, rainbow, red hot, high contrast, green hot, and volcano.
Storage, Battery, and Design of the MTV_256 PRO
Built for demanding job sites, the MTV_256 PRO operates reliably in temperatures ranging from -10°C to +60°C. Despite its rugged build, it is highly portable, weighing just 310g with dimensions of 115mm x 170mm x 300mm.
The device is powered by a rechargeable 2600mAh Li-ion battery, providing approximately 4 hours of continuous working time, and charges via a standard USB Type-C interface. All data is safely stored on the internal 8G memory, which holds more than 20,000 thermal pictures (JPG) and video recordings (MP4). Finally, the user interface is accessible worldwide, supporting English, French, German, Spanish, Arabic, and more.
MTV-256 PRO Specifications
| Category | Feature | Specification |
| Infrared | Sensor resolution | 192×256 |
| Spectral range | 8~14um | |
| Frequency | 25Hz | |
| NETD | 70mK@25°C | |
| Lens | 3.2mm | |
| Temperature range | -20°C ~ 400°C | |
| Accuracy | ±2°C or ±2% | |
| Measurement option | Highest, lowest, central and zone temperature | |
| Palette | Iron red, white hot, black hot, rainbow, red hot, high contrast, green hot, volcano | |
| Visual light | Resolution | 720P |
| FOV | 55°X83° | |
| General | Language | English, French, Germany, Spanish, Arab and more |
| Interface | USB Type-C | |
| Battery | 2600mAh Li-ion rechargeable | |
| Working time | Around 4 hours continuous use | |
| Working temp | -10°C ~ +60°C | |
| Storage temp | -40°C ~ +85°C | |
| N.W | 310g | |
| Dimension | 115mm x 170mm x 300mm | |
| Storage | Capacity | 8G memory, store more than 20k pictures |
| Picture format | JPG | |
| Video format | MP4 |
